MARCATOR – DIAL INDICATOR, ANSI/AGD GROUP 0

MARCATOR A1/2Q DIAL INDICATOR Unit construction and removable movement save repair/cleaning time and maintenance Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear Jeweled bearings resist friction, add to longer indicator life Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error Soft

MARCATOR A1/2Q DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
Normally furnished: balanced dial with + on right; centered vertical lug back; regular contact point PT-43, .09” radiused, .093” long
Optional dials: balanced with + on left; continuous clockwise; continuous counterclockwise
Order by part number and specify dial style desired. For other dial styles or special requirements, call Mahr

Order no.	Product type	Measuring span (inches)	Graduation value inch	Type of dial face	Pointer rotation (inches)	Error limit inches	Error limit over 2.5 rotations (inches)	Standard	Scale diameter (inches)	Dial color
2011089	A1/2Q	.010″	.0001”	0-2-0	.004″	± .0001″	± .0001″	ANSI	1.25″	green
2011091	A2I	.025″	.0001”	0-5-0	.010″	± .0001″	± .0001″	ANSI	1.25″	green
2011093	A3Q	.050″	.0005″	0-10-0	.020″	± .0005″	± .0005″	ANSI	1.25″	green

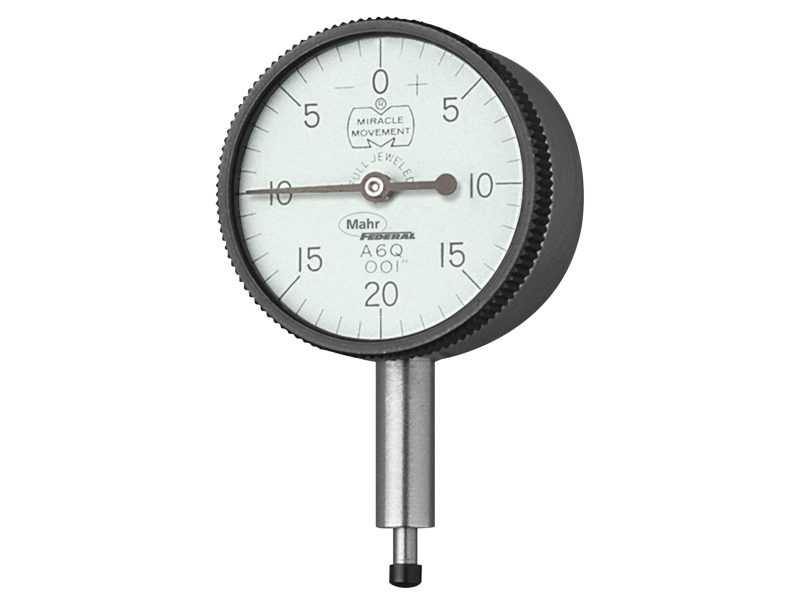

2011095	A6Q	.100″	.001″	0-20-0	.040″	± .001″	± .001″	ANSI	1.25″	green

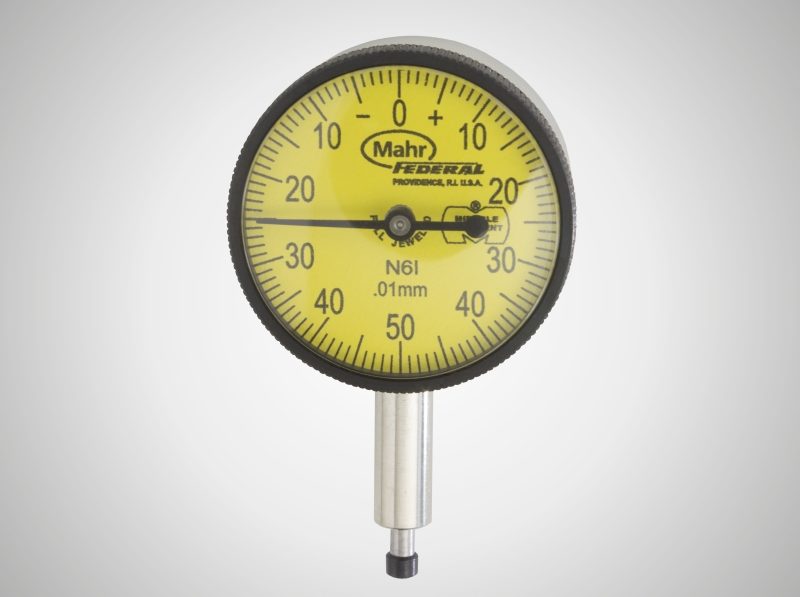

MARCATOR N6I DIAL INDICATOR

Unit construction and removable movement save repair/cleaning time and maintenance
Hardened gears and stainless steel racks provide lasting protection against indicator failure due to shock or wear
Jeweled bearings resist friction, add to longer indicator life
Skeletonized, hobbed gears for more sensitive response, superior indicator accuracy with minimal hysteresis error
Soft tinted dials (green – inch / yellow – metric) minimize eye strain
Special steel alloy
Balanced dial hand affords no shift, precise reading
Controlled rack and pinion mesh eliminates slope for precise response and reading
Smooth adjusting bezels for easy setup
Positive pressure pullback spring requires less maintenance
Compliance with ANSI/AGD dimensional and accuracy specifications
Normally furnished: balanced dial with + on right; centered vertical lug back; regular contact point PT-43, .09” radiused, .093” long
Optional dials: balanced with + on left; continuous clockwise; continuous counterclockwise
Order by part number and specify dial style desired. For other dial styles or special requirements, call Mahr

Technical data

Order no.	Product type	Measuring span in mm	Graduation value mm	Type of dial face	Range per rev. in mm	Error limit over 2.5 rotations (mm)	Standard	Scale diameter	Dial color
2011743	N1/2O	0.25 mm	0.002 mm	0-5-0	0.1 mm	± 0.002 mm	ANSI	32 mm	yellow
2011745	N3I	1.25 mm	0.005 mm	0-25-0	0.5 mm	± 0.005 mm	ANSI	32 mm	yellow
2011759	N6I	2.5 mm	0.01 mm	0-50-0	1 mm	± 0.01 mm	ANSI	32 mm	yellow
