MARTEST – TEST INDICATOR, HORIZONTAL MODEL, MM

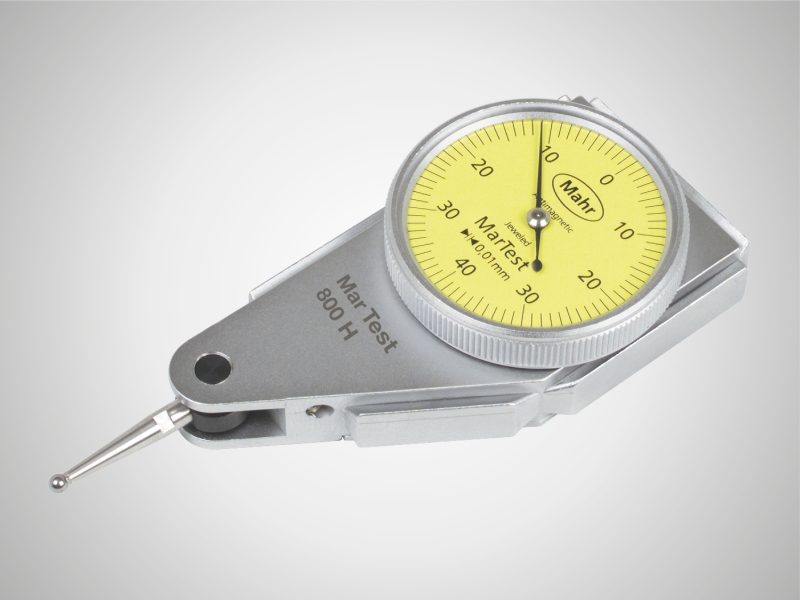

MARTEST 800 H TEST INDICATOR
- High-contrast dial face, sealed with O-ring
- Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
- Matt chrome plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensures infallible readings
- Ball bearing mounted double lever
- Friction clutch overload protection
- Stylus with carbide ball
 |
|||
 |
 |
 |
 |
Technical data
| Order no. | Product type | Measuring range mm | Graduation value mm | Type of dial face | Range per rev. in mm | Span of error fe (µm) | Total span of error fges (µm) | Hysteresis fu (µm) | Partial measuring range ft (µm) | Repeatability fw (µm) | Standard | Measuring force | Scale diameter | Dial color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4303200 |
800 H
|
± 0.4
|
0.01 mm
|
40-0-40
|
0.8 mm
|
10 µm
|
13 µm
|
3 µm
|
5 µm
|
3 µm
|
DIN 2270
|
0.25 N
|
27.5 mm
|
yellow
|
MARTEST – TEST INDICATOR, HORIZONTAL MODEL, INCH
MARTEST 801 H TEST INDICATOR
- High-contrast dial face, sealed with O-ring
- Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
- Matt chrome plated protective casing with three integrated dovetail guide rails
- Shockproof measuring mechanism
- Anti-magnetic model
- Automatic adjustment to the contacting direction ensures infallible readings
- Ball bearing mounted double lever
- Friction clutch overload protection
- Stylus with carbide ball
Technical data
| Order no. | Product type | Measuring range inch | Graduation value inch | Type of dial face | Pointer rotation (inches) | Deviation range fe (inches) | Total deviation range fges (inches) | Measuring value hysteresis fu (inches) | Partial measuring range ft (inches) | Repeatability fw (inches) | Standard | Measuring force | Scale diameter (inches) | Dial color | Set included |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2015324 |
801 H
|
± .015″
|
.0005″
|
15-0-15
|
.03″
|
.0004″
|
.0005″
|
.00012″
|
.0002″
|
.0001″
|
Factory standard
|
0.25 N
|
1.1″
|
green
|
holding bar HB-2157 / clamp CP-2199
|
| 4303950 |
801 H
|
± .015″
|
.0005″
|
15-0-15
|
.03″
|
.0004″
|
.0005″
|
.00012″
|
.0002″
|
.0001″
|
Factory standard
|
0.25 N
|
1.1″
|
green
|
