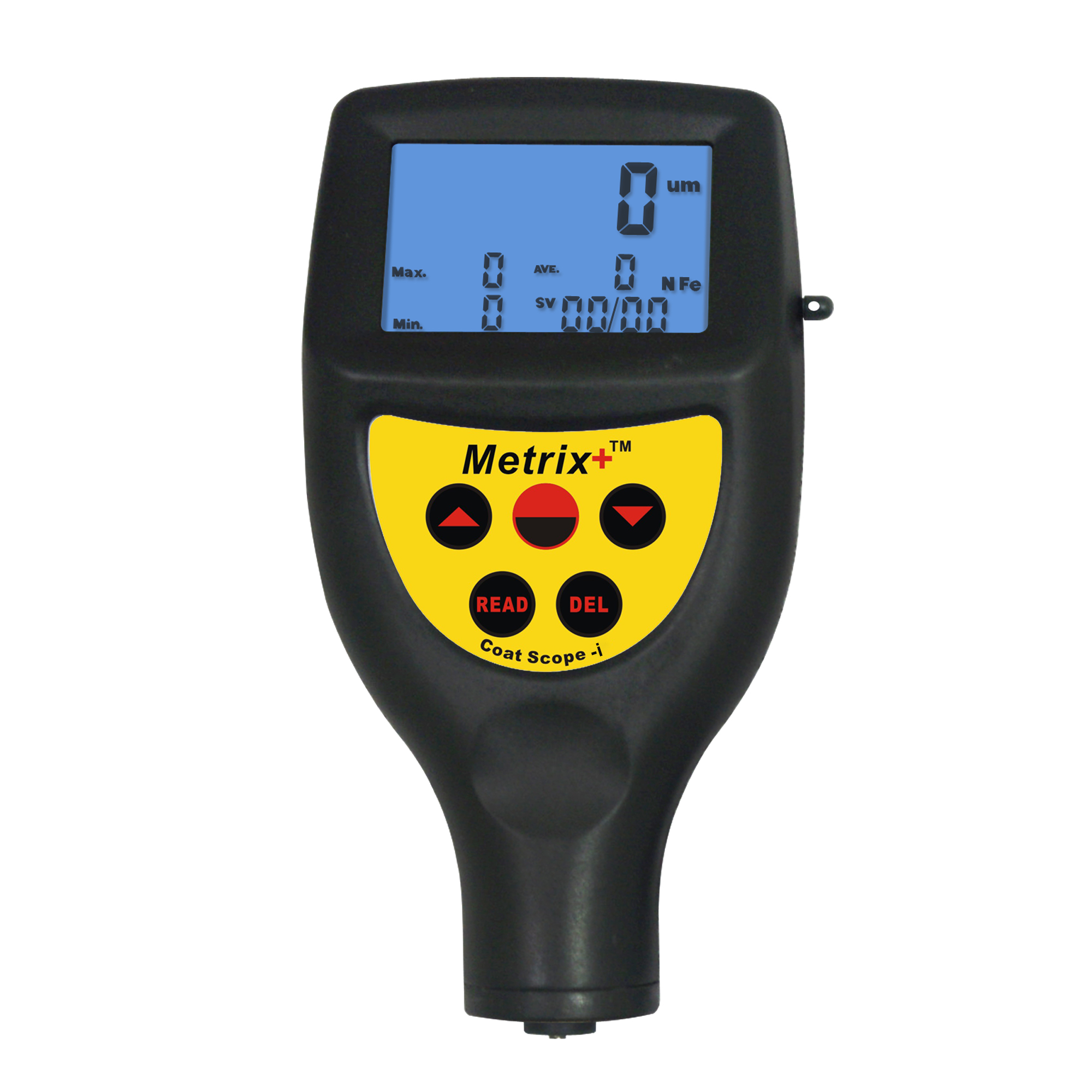

METRIX+ COAT SCOPE 27-I

▪Integrated probe for F and NF substrates with automatic substrate recognition.
▪Zero-point calibration and multi-point calibration.
▪Data storage and recall.
▪Statistics of max, min and avg value of readings calculated and displayed.
▪Backlit LCD display.
▪Metric/imperial conversion.
▪Single and continuous measuring modes.

BUY NOW DOWNLOAD CATALOG

f in

Click to Expand

METRIX+ COAT SCOPE 27-I

Product Overview

The Metrix+ Coat Scope i is a professional, non-destructive coating thickness gauge equipped with an integrated probe. It utilizes both magnetic induction (F) and eddy current (NF) measuring principles for precise thickness determination of non-magnetic coatings on magnetic substrates and non-conductive coatings on non-magnetic substrates. Designed in accordance with international standards, it offers automated substrate recognition, robust internal data storage, and advanced statistical calculation features.

Key Features & Capabilities

Integrated probe supporting F and NF substrates with automatic substrate recognition
Zero-point calibration and multi-point calibration support
Data storage and recall functionality for up to 99 measurement groups
On-screen statistics displaying maximum, minimum, and average reading values
4-digit backlit LCD screen for optimal visibility in varying lighting conditions
Metric and imperial unit conversion (selectable)
Single and continuous measuring modes
Low battery indicator and automatic power-off feature

Technical Specifications

Technical Parameter	Specification
Model	Metrix+ Coat Scope i
International Standards	ISO 2178, ISO 2361, DIN, ASTM, BS
Measuring Principle	Magnetic induction (F) & Eddy current (NF)
Display	4 digits backlit LCD
Measuring Range	0 – 2000 µm (0 – 80 mils)
Accuracy	±1–3%n or ±2.5 µm
Resolution	0.1 µm (0–99.9 µm); 1 µm (over 100 µm)
Metric / Imperial	Selectable
Minimum Curvature Radius	F: 1.5 mm (convex), 25 mm (concave)<br>NF: 3 mm (convex), 50 mm (concave)
Minimum Measuring Area	Diameter 6 mm
Minimum Thickness of Substrate	0.3 mm
Memory Storage & Recall	99 groups of measurements
Statistics	Max, min, and average value of readings
Additional Features	Low Battery Indicator, Auto power-off
Power Supply	2 x 1.5V AAA (UM 4) batteries
Operating Environment	Temperature: 0 to 50°C; Humidity: < 95%
Dimensions & Weight	130 mm × 65 mm × 35 mm; 90 g (not including batteries)
Standard Accessories	Coating Thickness Gauge, F/N, '0' calibration blocks, standard foils, technical manual, hard carry case
Optional Accessories	PC interface (cable and software)

Applications & Industries

The gauge is designed for non-destructively measuring the thickness of coatings and paintings. It is utilized across material surface treatment, the manufacturing industry, metal-processing industry, chemical industry, and commodity inspection sectors, functioning reliably in laboratory, workshop, and outdoor environments. Specific measurable applications include paint, galvanizing layers, lacquer layers, porcelain enamel, phosphide layers, copper tile, anodizing layers, varnish, plastic coatings, and powder coatings.
