• Operating and display units with satin chrome finish
  • Measuring head and end piece with mounting bore for interchangeable anvils
  • Rigid, lightweight tubular construction
  • Stainless spindle is hardened throughout and ground
  • Locking device
  • Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range
  • Protection sleeves have a satin chrome finish

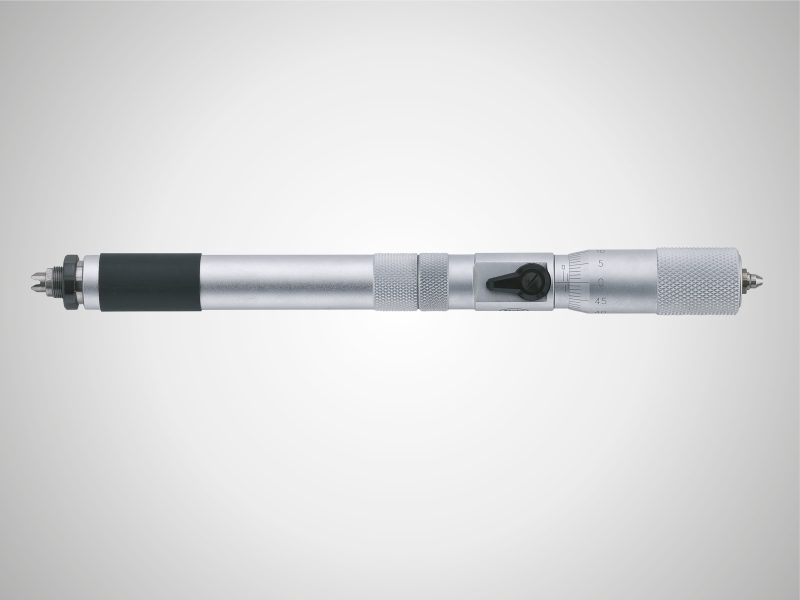

  • measuring head 44 CZ with end piece
  • case

Technical Data

Order no. Measuring range mm Graduation value mm Error limit µm Spindle thread pitch_mm Error limit
4168030
200 – 225
0,01
8 µm
0.5 mm
4+(l/100)µm l= length of the combination in mm
