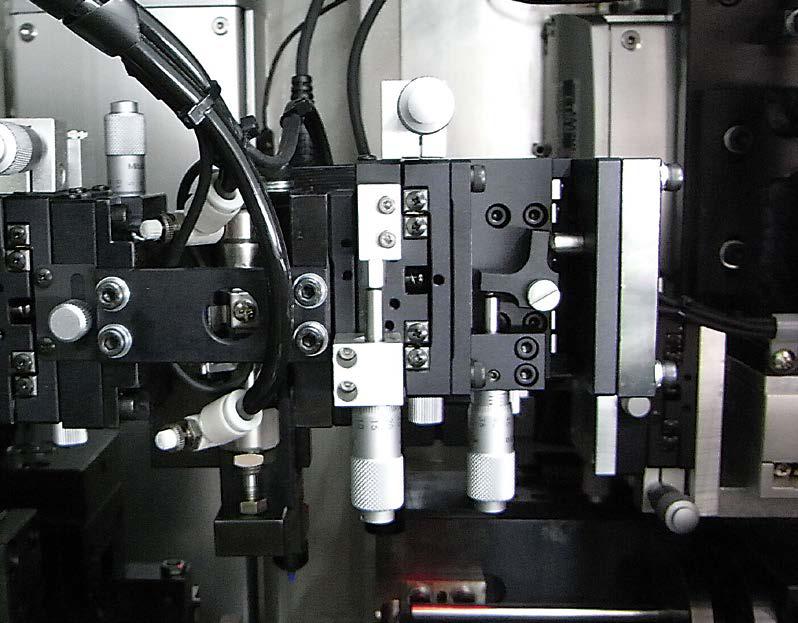

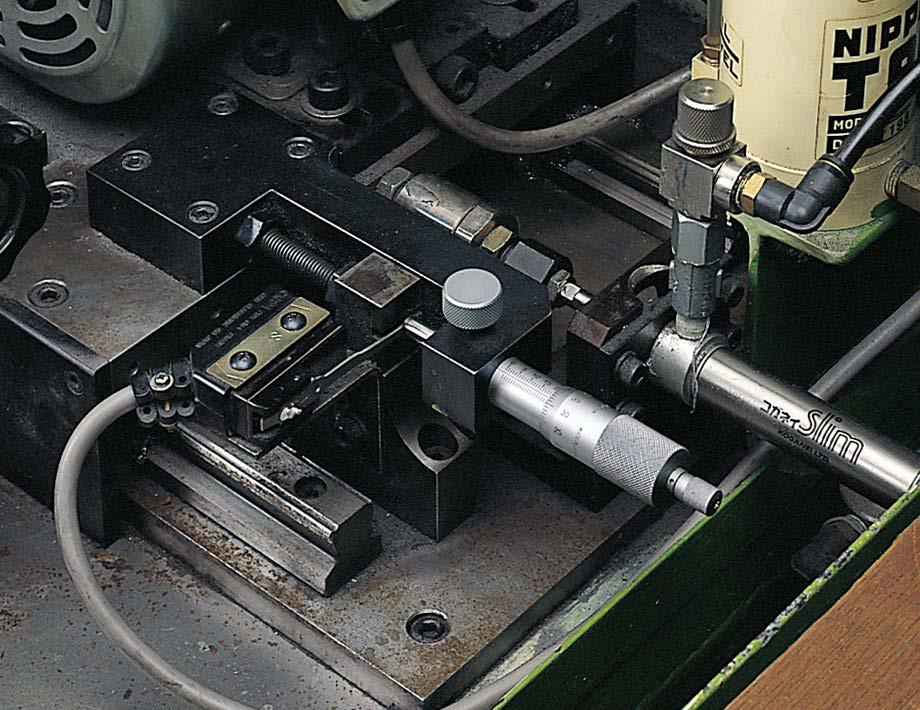

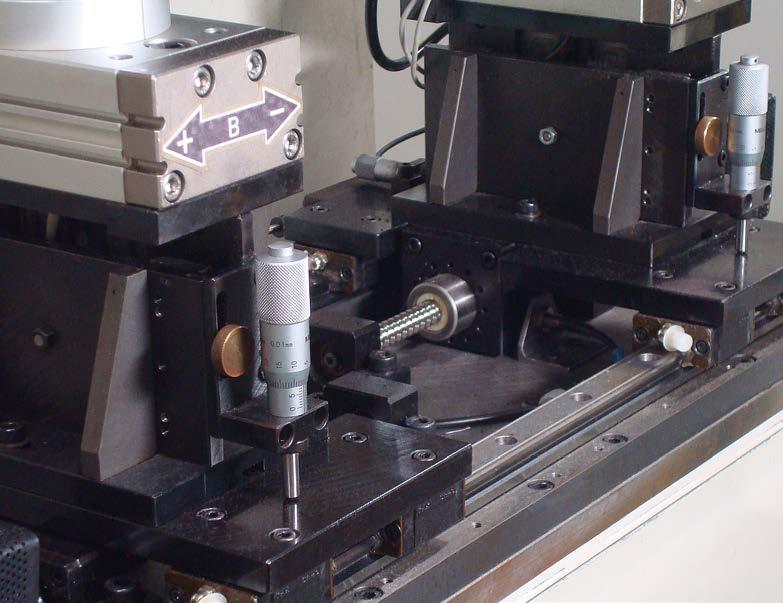

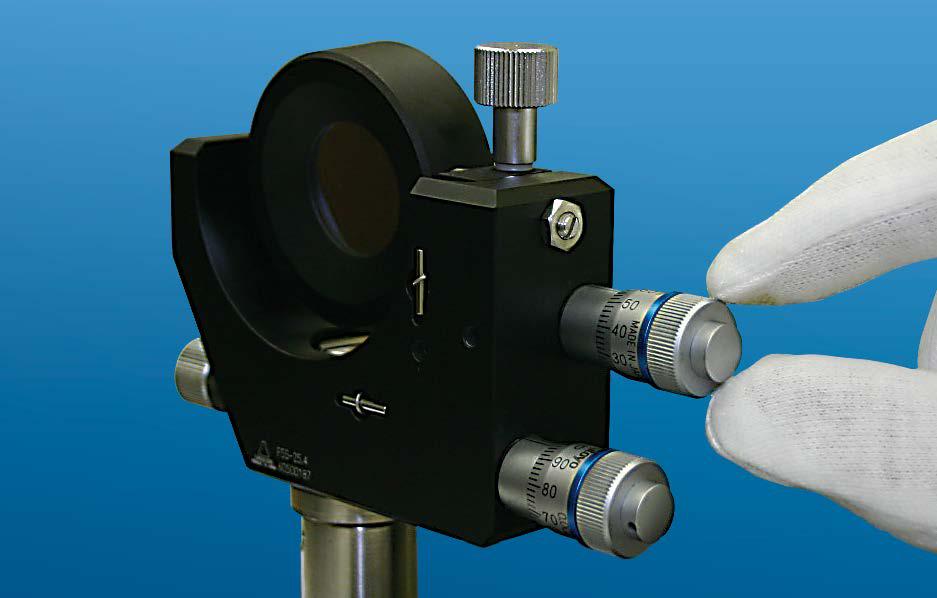

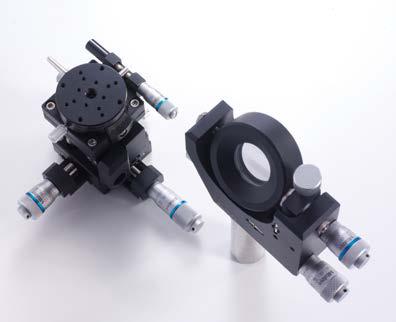

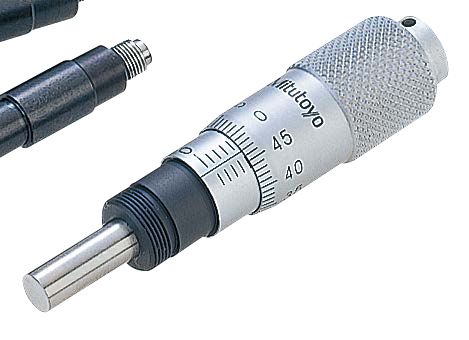

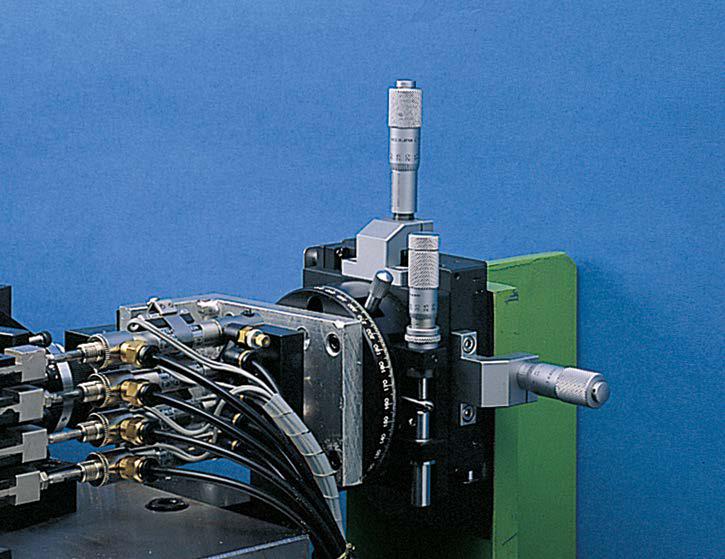

Mitutoyo Micrometer Heads comprise a wide-ranging lineup of precision positioning components engineered for effortless integration into machines, measuring jigs, optical elements, and specialized fixtures. Designed to meet diverse spatial and functional demands, the series includes miniature, ultra-small, short thimble, and standard configurations built with robust materials and high-precision threading.

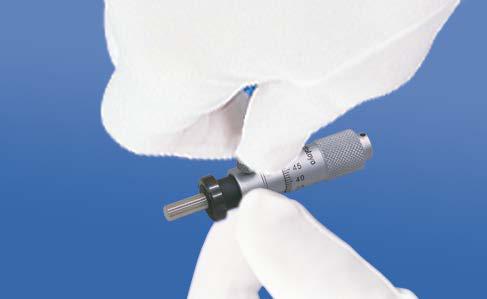

- Miniature & Light-Weight Design: Facilitates easy incorporation into tight spaces, specialized machinery, jigs, and fixtures.
- Short Body Construction: Maintains full measuring ranges while minimizing overall length for space-limited applications.
- Thimble Variations: Multiple thimble diameters and graduation styles can be selected based on specific operational requirements.
- Durable Construction: Measuring faces are hardened (60 HRC or more / 90 HRA or more for carbide tips) and lapped for extended wear resistance. Satin-chrome plated scale finishes prevent glare and ensure reading clarity.

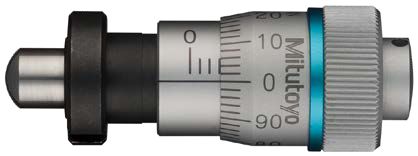

- Spindle Options: Available with flat or spherical ends (carbide-tipped variants available), plain stems, stem locknuts, and non-rotating spindle mechanisms to reduce torsional wear and workpiece deformation.

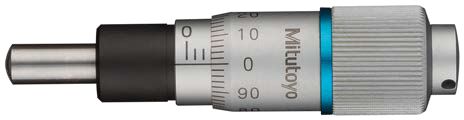

Small/Ultra-small Type (Series 148) — Metric
Short Thimble with Choice of Diameter (Series 148) — Metric
Small Standard Type (Series 148) — Metric

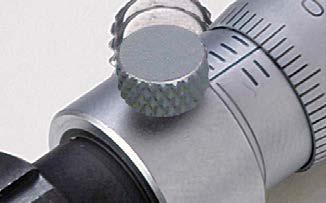

\With spindle lock*
