MITUTOYO GAUGE BLOCKS

Code:

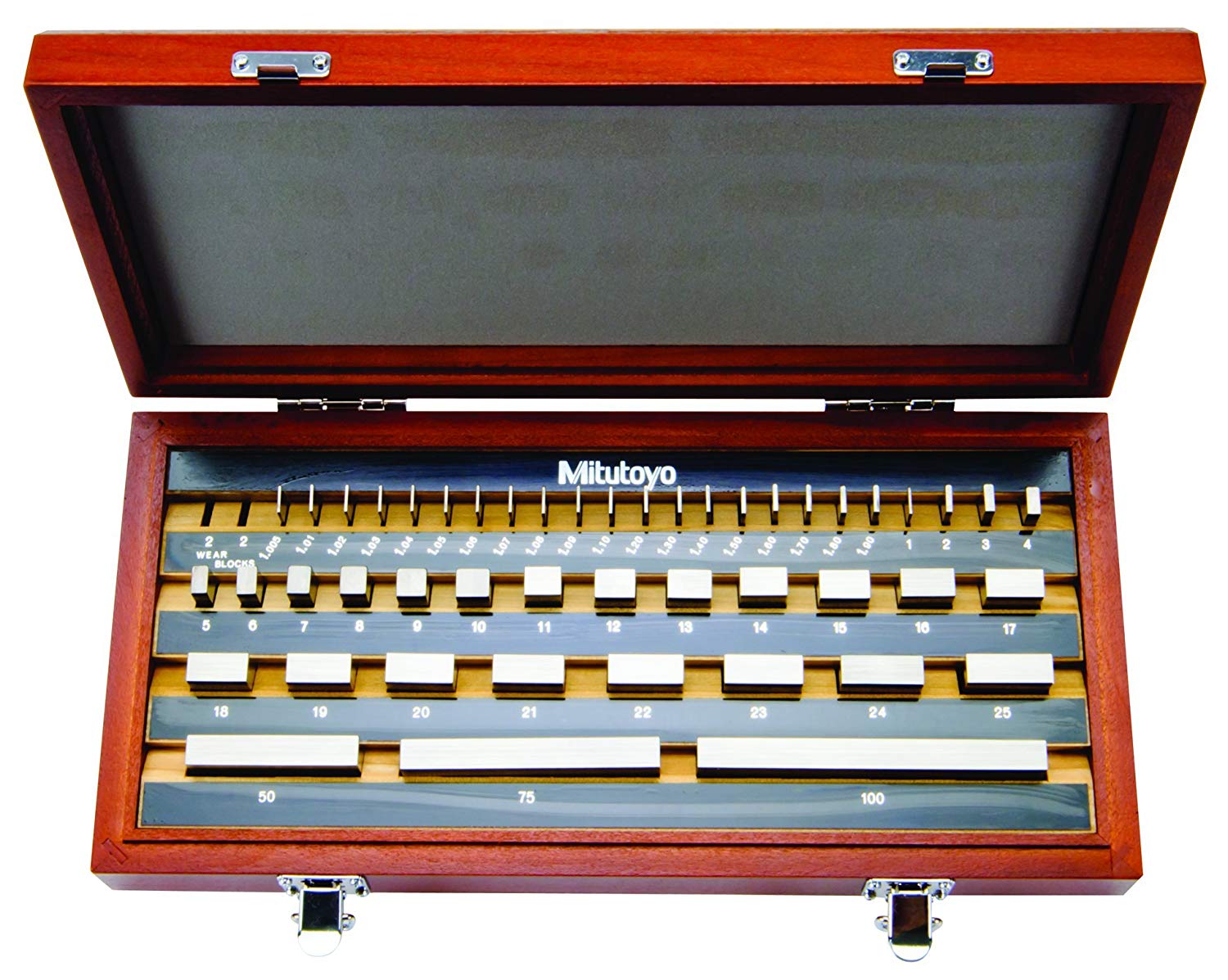

▪Mitutoyo offers gauge blocks for use as length standards that are fully domestically manufactured at our plant in Japan and highly trusted worldwide for their accuracy, quality, and durability.
▪They are available in three types: steel rectangular gauge blocks, ceramic rectangular gauge blocks (CERA Blocks), and steel square gauge blocks. In addition, tungsten carbide rectangular gauge blocks and tungsten carbide square gauge blocks are available as protectors. Select the right gauge blocks depending on the conditions, environment, and application of use

Click to Expand

MITUTOYO GAUGE BLOCKS

Product Overview

Mitutoyo gauge blocks serve as high-precision length standards, fully manufactured at plants in Japan and recognized globally for accuracy, quality, and durability. Available in steel rectangular, ceramic rectangular (CERA Blocks), and steel square variants, alongside tungsten carbide options for protectors. Designed to meet strict dimensional standards (ISO 3650, JIS B 7506, and BS 4311), these blocks ensure reliable traceability to national standards.

Key Features & Capabilities

Manufacturing Excellence: Manufactured using high-carbon, high-chrome steel or special ceramic materials, thermally processed for maximum hardness, minimal aging, and dimensional stability.
Superior Wringing: Lapped measuring surfaces provide optimal flatness and fine surface finish, ensuring maximum wringing force between blocks.
Grade & Application Selection:
Grade K: Reference standard for checking gauge block calibration and academic research.
Grade 0: Calibration and inspection use for checking precision instruments and workshop gauges.
Grade 1: Inspection use and manufacturing gauge calibration.
Grade 2: Workshop use for mounting tools, cutters, and general manufacturing inspection.

Technical Specifications & Set Configurations

Grade and Application Matrix

Usage	Applications	Grade
Workshop Use	• Mounting tools and cutters<br>• Manufacturing gages & calibrating instruments	2 (or 1 for calibrating instruments)
Inspection Use	• Inspecting mechanical parts, tools, etc.<br>• Checking accuracy of gages & calibrating instruments	1 or 2 (0 or 1 for calibrating instruments)
Calibration Use	• Checking accuracy of gauge blocks for workshop/inspection<br>• Checking accuracy of instruments	K or 0
Reference Use	• Checking accuracy of gauge blocks for calibration<br>• Academic research	K

1 mm Base Block Sets (Specifications & Content Matrix)

Blocks per set	Steel Code No.	CERA Code No.	Standard / Grade Available (ISO/JIS, ASME, BS)	Size (mm)	Step (mm)	Qty.
122	—	516-596 to 516-599	ISO/JIS (K, 0, 1, 2)	1.0005<br>1.001 - 1.009<br>1.01 - 1.49<br>1.6 - 1.9<br>0.5 - 24.5<br>30 - 100<br>25, 75	0.001<br>0.01<br>0.1<br>0.5<br>10<br>—	1<br>9<br>49<br>4<br>49<br>8<br>2
112	516-531	516-541 to 516-340	ISO/JIS, ASME, BS	1.0005<br>1.001 - 1.009<br>1.01 - 1.49<br>0.5 - 24.5<br>25 - 100	0.001<br>0.01<br>0.5<br>25	1<br>9<br>49<br>49<br>4
103	516-533	516-542 to 516-344	ISO/JIS, ASME, BS	1.005<br>1.01 - 1.49<br>0.5 - 24.5<br>25 - 100	0.01<br>0.5<br>25	1<br>49<br>49<br>4
88	—	516-369 to 516-372	ISO/JIS, BS	1.0005<br>1.001 - 1.009<br>1.01 - 1.49<br>0.5 - 9.5<br>10 - 100	0.001<br>0.01<br>0.5<br>10	1<br>9<br>49<br>19<br>10
87	516-535	515-543 to 516-348	ISO/JIS, ASME, BS	1.001 - 1.009<br>1.01 - 1.49<br>0.5 - 9.5<br>10 - 100	0.001<br>0.01<br>0.5<br>10	9<br>49<br>19<br>10
76	—	516-349 to 516-352	ISO/JIS	1.005<br>1.01 - 1.49<br>0.5 - 9.5<br>10 - 40<br>50 - 100	0.01<br>0.5<br>10<br>25	1<br>49<br>19<br>4<br>3
56	516-536	515-544 to 516-356	ISO/JIS, ASME	0.5<br>1.001 - 1.009<br>1.01 - 1.09<br>1.1 - 1.9<br>1 - 24<br>25 - 100	0.001<br>0.01<br>0.1<br>1<br>25	1<br>9<br>9<br>9<br>24<br>4
47	516-537	516-545 to 516-360	ISO/JIS, ASME	1.005<br>1.01 - 1.09<br>1.1 - 1.9<br>1 - 24<br>25 - 100	0.01<br>0.1<br>1<br>25	1<br>9<br>9<br>24<br>4
47	—	516-361 to 516-364	ISO/JIS, BS	1.005<br>1.01 - 1.19<br>1.2 - 1.9<br>1 - 9<br>10 - 100	0.01<br>0.1<br>1<br>10	1<br>19<br>8<br>9<br>10
46	—	516-394 to 516-397	ISO/JIS	1.001 - 1.009<br>1.01 - 1.09<br>1.1 - 1.9<br>1 - 9<br>10 - 100	0.001<br>0.01<br>0.1<br>1<br>10	9<br>9<br>9<br>9<br>10
34	—	516-178 to 516-181	ISO/JIS, BS	1.0005<br>1.001 - 1.009<br>1.01 - 1.09<br>1.1 - 1.9<br>1 - 5<br>10	0.001<br>0.01<br>0.1<br>1<br>—	1<br>9<br>9<br>9<br>5<br>1
32	—	516-365 to 516-368	ISO/JIS, BS	1.005<br>1.01 - 1.09<br>1.1 - 1.9<br>1 - 9<br>10 - 30<br>60	0.01<br>0.1<br>1<br>10<br>—	1<br>9<br>9<br>9<br>3<br>1
