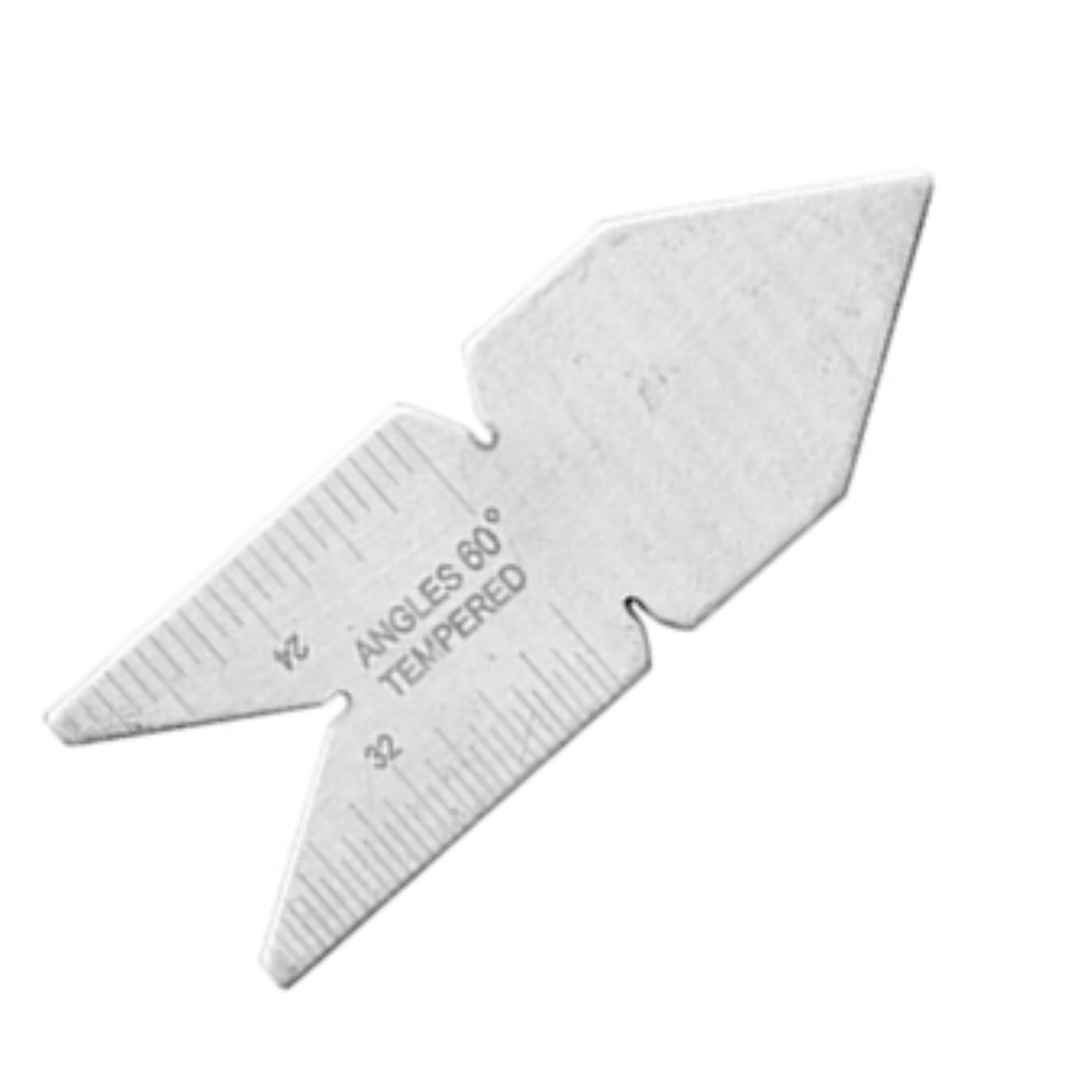

The gauge is designed with accurately machined profiles corresponding to standard thread angles (typically 60° for metric/UN threads), allowing quick and reliable alignment. Manufactured from high-quality hardened steel or stainless steel, it offers excellent durability, wear resistance, and long service life. Its compact design makes it easy to handle and convenient for workshop use.

Where to Use

• Lathe Operations: Aligning threading tools with the workpiece
• Machining: Setting correct tool angle for thread cutting
• Tool Rooms: Checking and grinding threading tools
• Maintenance Work: Verifying thread tool alignment
• Engineering Workshops: Precision setup and machining tasks

Key Features

• Ensures accurate tool alignment for threading
• Precisely machined thread angle profiles
• Durable and wear-resistant construction
• Compact and easy to use
• Suitable for quick setup and adjustment

Applications

Used for setting, aligning, and checking threading tools during screw cutting and lathe operations to ensure accurate thread production.
