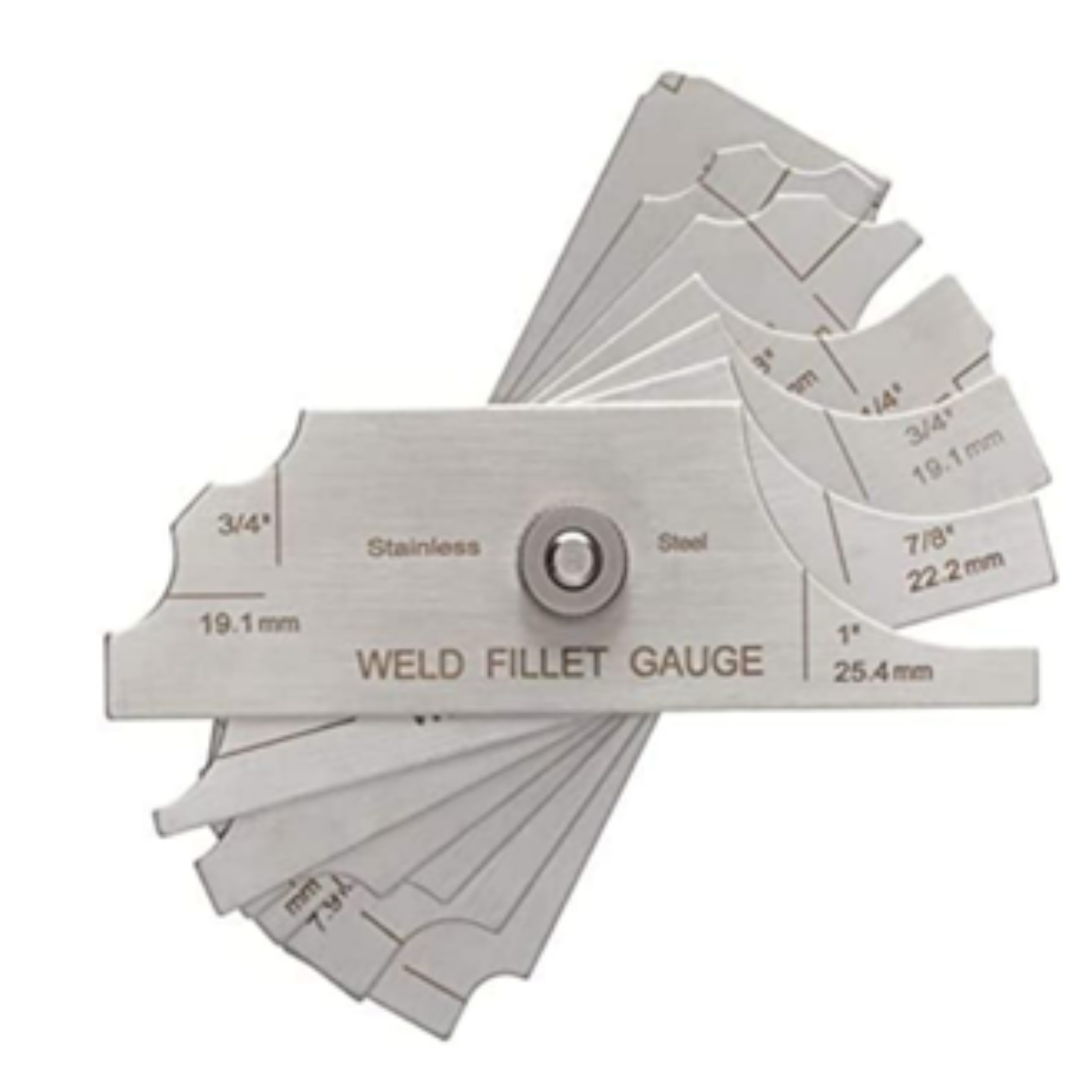

The gauge consists of multiple precisely machined blades or plates with clearly marked dimensions, allowing quick and accurate measurement. Manufactured from high-quality stainless steel, it offers excellent durability, corrosion resistance, and long service life, making it ideal for workshop and field inspection use.

Where to Use

• Welding Applications: Checking fillet weld size and profile
• Fabrication: Ensuring weld quality during production
• Inspection Work: Quality control and weld verification
• Construction & Structural Work: Verifying weld standards
• Engineering Workshops: General weld measurement tasks

Key Features

• Measures leg length, throat, and weld profile
• Accurate and clearly marked dimensions
• Durable and corrosion-resistant construction
• Compact and easy to handle
• Suitable for workshop and on-site inspection

Applications

Used for accurate inspection and measurement of fillet welds in fabrication, construction, machining, and quality control processes.
