AMPLIFIER

Name: AMPLIFIER
Brand: Imada

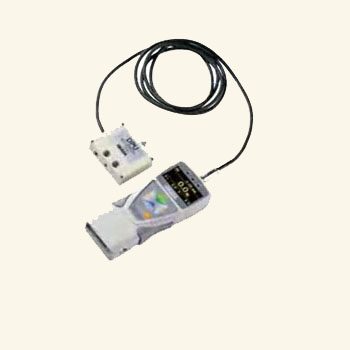

ZTA／ZTS Sensor Separate Type Measured value by high speed sampling (Maximum 2000Hz) is displayed. The value is clear to see by an organic EL display. ※It is not possible to connect an amplifier to plural load cells. FA Plus Desktop Type Load Cell Amplifier Size：W210×D160×H99mm Weight：Approx.1.5kg ※It is not possible to connect an amplifier to plural load

f in

Click to Expand

AMPLIFIER

Product Overview

The Imada Amplifier series includes the ZTA / ZTS Sensor Separate Type and the FA Plus Desktop Type Load Cell Amplifier. These high-precision units feature a maximum high-speed sampling rate of 2000Hz to accurately track rapid force changes.

Note: It is not possible to connect an amplifier to multiple load cells simultaneously.

Key Features & Capabilities

High-Speed Sampling: Operates at 2000Hz (2000 data/sec) to capture rapid force changes.
Display Options:
ZTA / ZTS Series: Clear organic EL display.
FA Plus Series: 4-digit LTD display.
Functions: Peak hold, Comparator (OK/NG judgment), Setting sensitiveness, and more.
Output Functions (FA Plus): USB, Serial (RS232C), Analog (Approx. ±2V), Each comparator, and Overload caution.

Technical Specifications

Parameter	Specification
Brand	Imada
Model Types	ZTA / ZTS (Sensor Separate Type), FA Plus (Desktop Type Load Cell Amplifier)
Sampling Rate	2000Hz (2000 data/sec)
Measurement Units	N (kN), kgf (gf), lbf (ozf) - FA Plus
Display	4 digit LTD (FA Plus) / Organic EL Display (ZTA/ZTS)
Dimensions (FA Plus)	W210 × D160 × H99 mm
Weight (FA Plus)	Approx. 1.5 kg
Standard Accessories (FA Plus)	Power cable, Spare fuse, USB cable, Driver CD-ROM, Load Capturing software FAP logger
