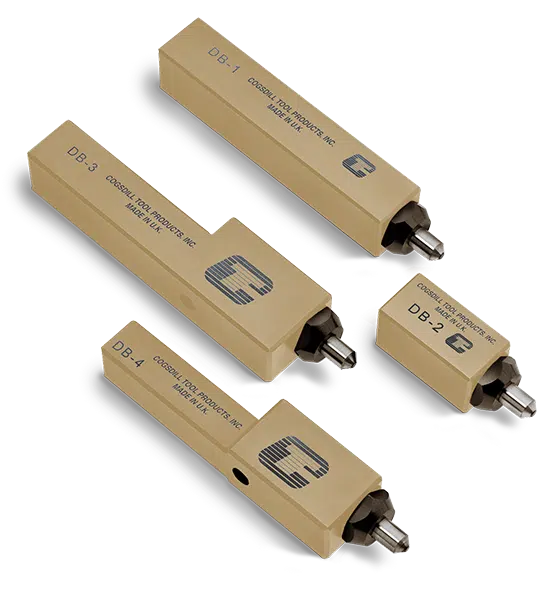

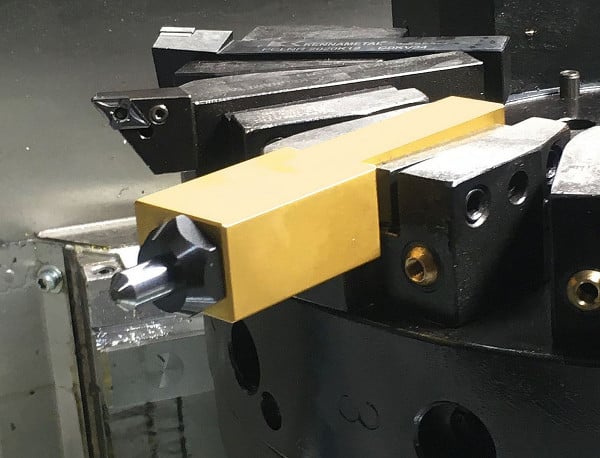

The Cogsdill Diamond Hard Burnishing Tool is a precision surface finishing instrument designed to produce mirror-like surface finishes on a wide range of metallic components. By utilizing a replaceable polished diamond insert, the tool achieves surface refinement through plastic deformation rather than material removal. This process enhances surface integrity, improves wear resistance, and extends the operational life of the workpiece. The tool is engineered for versatility, compatible with manual, CNC, and Swiss-type lathes.
- Surface Finish Quality: Achieves mirror-like finishes ranging from 0.10–0.20 µm (4–8 µin).
- Non-Material Removal: Improves surface characteristics without removing material, maintaining precise dimensional tolerances.
- Adjustable Performance: Features adjustable burnishing pressure to ensure optimal results across varying material hardness levels.
- Replaceable Insert: Equipped with a high-durability, polished diamond insert that can be replaced to maintain peak performance.

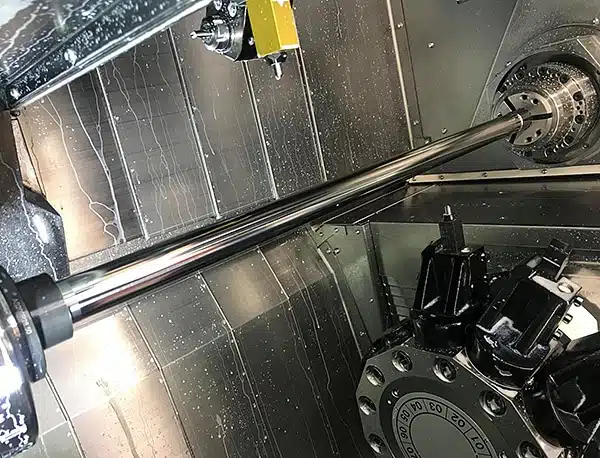

- Versatile Compatibility: Suitable for processing shafts, bores, and flat surfaces.
- Material Versatility: Effective on carbon steel, tool steel, cast iron, various alloys, and most ferrous and non-ferrous metals.
