CP SCAPERS

Name: CP SCAPERS
Brand: CP GRATEX
SKU: 72034

Code:

SCRAPER

DOWNLOAD CATALOG

f in

Click to Expand

Product Overview

The CP Scapers series by CP Gratex offers professional-grade surface finishing and deburring solutions designed for precision industrial applications. Featuring triangular HSS scrapers, dual-ended scrapers, and hollow scrapers mounted in ergonomic handles (including hex aluminum and poly acetal options), these tools deliver clean surface finishing, edge deburring, and deflashing of hard component edges and plastic components.

Key Features & Capabilities

Triangular HSS Scrapers: Designed with 3mm or 8mm A/F HSS scraper configurations for scraping hard component edges.

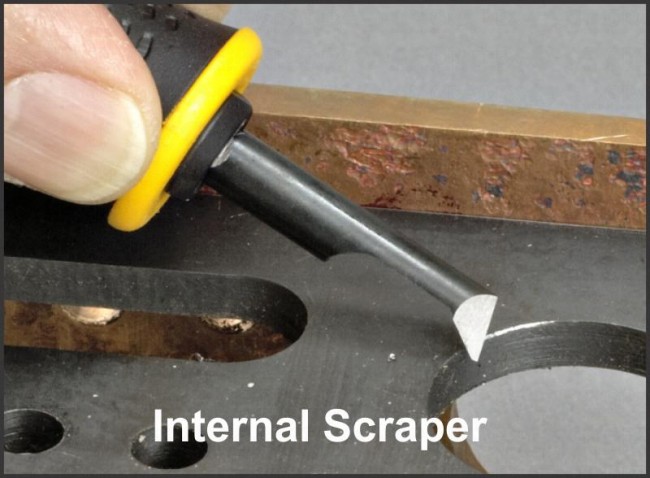

Dual-Ended Scrapers: Incorporates combinations such as 6mm triangular scrapers and internal scrapers on opposite sides, or multi-functional blade configurations.
Hollow Scrapers: Available in 4.2mm and 7.4mm A/F configurations for specialized hollow scraping tasks.
Ergonomic Handles: Options include powder-coated aluminum hex handles, poly acetal bodies with ball end caps, and collet actions for sliding and fixing scraper blades to desired depths.
Replaceable Blade Designs: Select models feature replaceable blades or adjustable extension lengths.

Technical Specifications & Model Matrix

Model / SKU	Description / Configuration	Dimensions / Handle Specs
SCR-3 (72034)	Triangular 3mm A/F HSS Scraper, fixed mounted in 8mm Hex Al. powder-coated handle	L = 142mm, Handle = 8mm Hex, Wt. = 28gms
SCR-8-SD (74084)	Triangular 8mm A/F HSS Scraper mounted in Poly Acetal Body (Yellow/Black) with Ball End Cap	L = 149mm, Handle Dia = 23.7mm, End Cap Dia = 24mm, Wt. = 64gms
SCR-3 (75)-SD (74756)	Triangular 3mm A/F HSS Scraper of 75mm length mounted in CG Poly Acetal Body with Soft Grip & Ball End Cap; Spring Loaded Collet Action	L = 119mm min. / 163mm max., Handle Dia = 19.8mm, End Cap Dia = 21.7mm, Wt. = 40gms
HS-80 (78080)	Double Ended Triangular Hollow Scraper of 4.2mm A/F mounted in 1/2" Al. Hex Handle with collet action	L = 140mm min. / 175mm max., Handle Size = 1/2" Hex, Wt. = 44gms
SCR-8 (75084)	Triangular 8mm A/F HSS Scraper mounted in 3/8" Hex Al. powder-coated handle. Replaceable type.	L = 132mm, Handle = 3/8" Hex, Wt. = 40gms

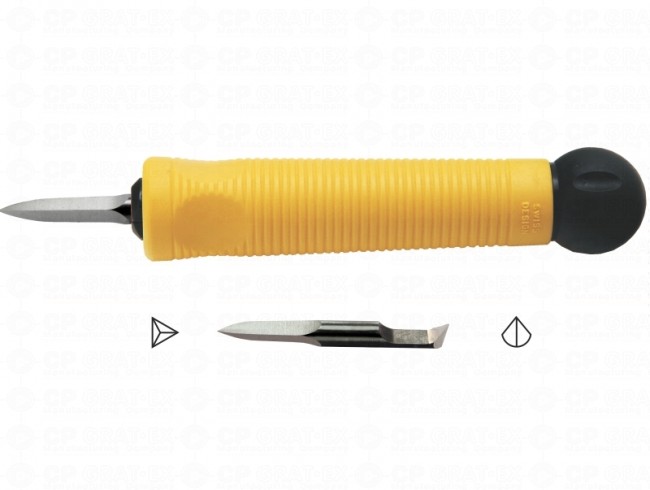

SCR-6(2)-SD (74064)	Double ended Scraper mounted in a Poly Acetal Body T-SD with Collet Action (6mm A/F Triangular Scraper on one side & Internal Scraper on other side)	L = 147mm, Handle Dia = 23.7mm, End Cap Dia = 24mm, Wt. = 66gms
SCR-345-SD (74456)	Triangular 3mm Internal Scraper of 75mm length mounted in CG Poly Acetal Body with Soft Grip & Ball End Cap; Spring Loaded Collet Action	L = 110mm min. / 163mm max., Handle Dia = 19.8mm, End Cap Dia = 21.7mm, Wt. = 40gms
HS-120 (78120)	Double Ended Triangular Hollow Scraper of 7.4mm A/F mounted in 14mm Al. Hex Handle with collet action	L = 162mm min. / 214mm max., Handle Size = 14mm Hex, Wt. = 58gms

Replacement Blades

Blade Model / SKU	Description
SCR-3 (72750)	Triangular 3mm A/F Scraper 75mm length
SCR-345 (72450)	Triangular 3mm Internal Scraper 75mm length
SCR-6 (2) Combo (74060)	Double ended 6mm Triangular Scraper on one side & Internal Scraper on the other side
SCR-8 Blade (75080)	Triangular 8mm A/F Scraper
Hollow Scraper 80 (76080)	Double ended triangular Hollow scraper of 4.2mm
Hollow Scraper 120 (76120)	Double ended triangular Hollow scraper of 7.4mm
