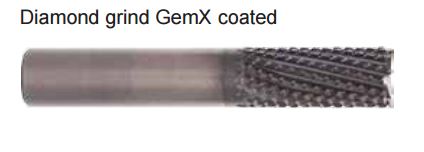

The M.A. Ford Series 239 Diamond Coated Routers are precision-engineered cutting tools featuring GemX diamond coating. These routers are available in a variety of configurations, including Bur End, End Mill, and Safe End styles, designed to meet specific machining requirements.
- Coating: GemX diamond coating for enhanced tool life and performance.
- End Styles: Available in Bur End, End Mill, and Safe End configurations.
- Versatility: Comprehensive range of diameters from 1/8" to 1/2".
- Customization: Stock available for desired end features with rapid turnaround.
- Cutting Data: Optimized for both slotting and side milling applications (refer to technical data tables).
- Side Milling: Use a Radial Depth (Ae) of 20% or less.
- Slotting: Tools must have an end grind to slot.
- Feed Adjustment:
- ≤ 0.5D: x 150%
- 0.5D - 1D: x 120%
- 1D - 2D: x 80%
- 3D - 4D: x 50%
- General: Parameters provided are for common material thicknesses (1/4" or 6mm). Conventional milling is recommended for best surface finish. Technical data is advisory; variations may be necessary based on specific applications.
