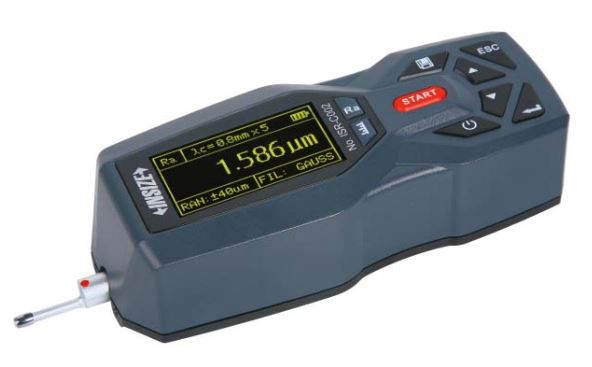

INSIZE ROUGHNESS TESTER (CODE ISR – C002)

Code:

▪Roughness tester can be operated by mobile phones (only Android system) or computers
▪Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
▪Support bluetooth printer
▪21 roughness parameters
▪Display roughness value, profile and curve
▪Memory of maximum 100 results
▪Automatic power off

Click to Expand

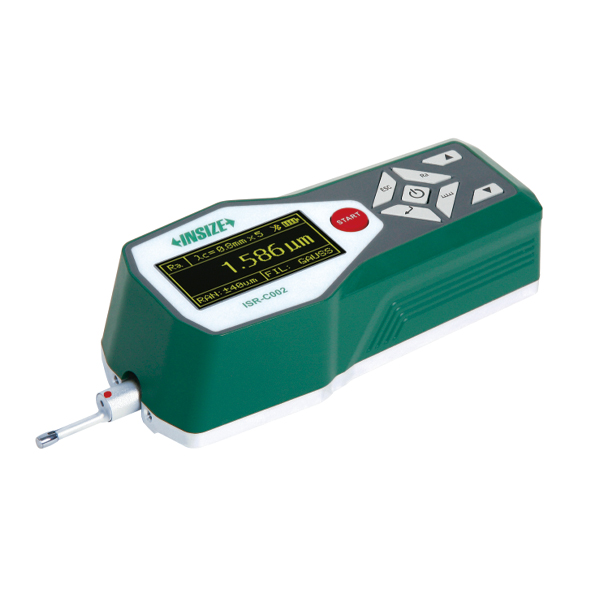

INSIZE ROUGHNESS TESTER (CODE ISR – C002)

Product Overview

The INSIZE ISR-C002 is a precision roughness tester designed for industrial surface analysis. It features a versatile interface that allows for operation via Android mobile devices or computers. The unit provides comprehensive surface data, including roughness values, profiles, and curves, with the capability to export data directly to Excel via Bluetooth or SPC cable.

Key Features & Capabilities

Multi-Platform Operation: Compatible with Android mobile systems and computers.
Data Management: Supports data transfer to Excel and Bluetooth printing.
Advanced Analysis: Measures 21 distinct roughness parameters.
Visual Feedback: Displays roughness values, profiles, and curves on the integrated screen.
Data Storage: Internal memory capacity for up to 100 measurement results.
Power Management: Equipped with an automatic power-off function to conserve the built-in rechargeable battery.

Technical Specifications

Parameter	Specification
Range	320µm (-160µm ~ 160µm)
Accuracy	±10%
Resolution (Ra)	0.001µm
Parameters	Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz(JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry(JIS), Rmax
Probe Type	Inductive
Stylus Radius/Angle	5µm/90°
Stylus Material	Diamond
Measuring Force	4mN
Measuring Unit	µm/µin
Cut off	0.25 / 0.8 / 2.5mm
Number of Cut-offs	1 to 5
Moving Speed	0.5mm/s, 1mm/s
Output	Bluetooth and USB
Power	Built-in rechargeable battery
Dimensions (W×D×H)	141×55×40mm
Weight	400g
