KRISTEEL RADIUS GAUGE MODEL NO – 1512

Code:

▪To check the radius of concave and convex of any radial part.
▪Gauge Made of Stainless Steel with fine blanking.
▪Useful in workshop general purpose, tool & die maker, wood working industries, quality dept. etc.

Click to Expand

KRISTEEL RADIUS GAUGE MODEL NO – 1512

Product Overview

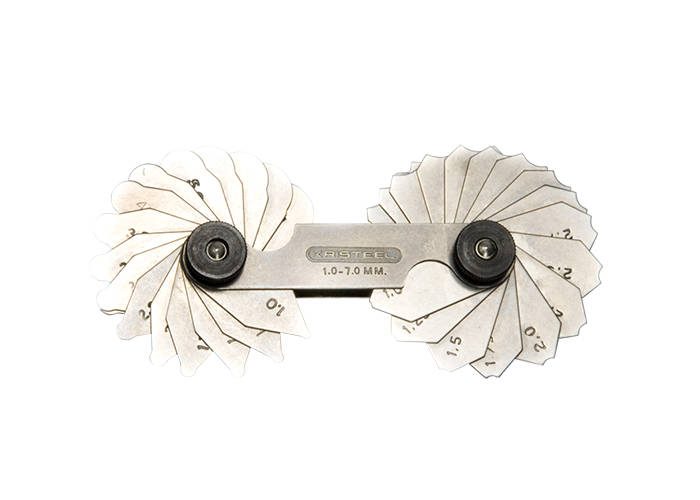

The Kristeel Radius Gauge (Model No. 1512) features concave and convex blades designed for checking sectors of a circle and the radius of concave and convex portions of any radial part. Supplied with a nickel-plated case and locking screw, this gauge is widely utilized in workshops, general purpose applications, tool and die making, woodworking industries, and quality control departments.

Key Features & Capabilities

Blade Design: Concave and convex blades for checking internal and external radii.
Locking Mechanism: Equipped with a nickel-plated case and locking screw to securely hold leaves during inspection.
Material Construction: Manufactured from full-hard stainless steel with polished finish.
Graduation: Gauge size marked on each leaf.

Technical Specifications

Standard: EEC-I
Least Count: 0.5 mm
Accuracy: ± 0.1 mm
Material: Stainless Steel, Full Hard
Finish: Polished
Packaging: Packed in a PVC pouch

Model & Size Matrix

Model No.	No. of Blades	Radius Size (mm)	Leads (mm)	Length (mm)	Width (mm)	Thickness (mm)	Type	Accuracy (±mm)
1512 A	17	1 - 7	1–3 = 0.25, 3–7 = 0.5	70	14	0.5	Flexible	0.1
1512 B	16	7.5 - 15	7.5–15 = 0.5	84	21	0.5	Flexible	0.1
1512 C	20	15.5 - 25	15.5–25 = 0.5	84	21	0.5	Flexible	0.1
1512 D	32	25 - 40	25–40 = 0.5	84	21	0.5	Flexible	0.1
1512 ABC	53	1 - 25	1–25 = 0.5	84	21	0.5	Flexible	0.1
