LED LIGHT SOURCE CODE ISV-HL3000

Name: LED LIGHT SOURCE CODE ISV-HL3000
Brand: INSIZE
SKU: ISV-HL3000

Code:

For rigid borescopes High LED illumination and brightness is adjustable For long time work with lower noise Check the PDF

DOWNLOAD CATALOG

f in

Click to Expand

LED LIGHT SOURCE CODE ISV-HL3000

Product Overview

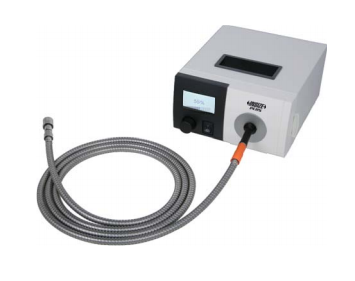

The INSIZE ISV-HL3000 is a high-intensity LED light source designed specifically for use with rigid borescopes. Engineered for professional industrial inspection environments, this unit features adjustable brightness control and a fan-cooled system to ensure stable, low-noise operation during extended work sessions.

Key Features & Capabilities

Application: Optimized for rigid borescopes.
Illumination: High-intensity LED output with user-adjustable brightness.
Thermal Management: Integrated fan cooling system for reliable long-term operation.
Operational Efficiency: Designed for low-noise performance.

Technical Specifications

Parameter	Specification
Brightness	470lm
Color temperature	5800K
Cooling method	Fan cooling
Operating temperature	10 ~ 40°C
Working life	30000h
Power supply	12V DC, 5420mA
Dimension	170x196x98mm
Weight	3.8kg
