MARAMETER 26P-7M PORTABLE THICKNESS GAGES

  • Push down movement
  • Molded body fits shape of hand
  • Built-in indicator
  • Gage is normally open for easy part entry
  • Push down button to close the contacts
  • Rugged and compact for portable use
  • 6.3 mm / .25“ diameter, flat steel contacts

Technical data

Order no. Product type Measuring range mm Throat depth mm Graduation value mm Distance of movable anvil_mm Measuring surface diameter Size of measuring surface in mm
2050482
26P-7M
0 – 7.6
16 mm
0.01 mm
2.5 mm
6.3 mm
6.3 mm / 0.25″ diameter

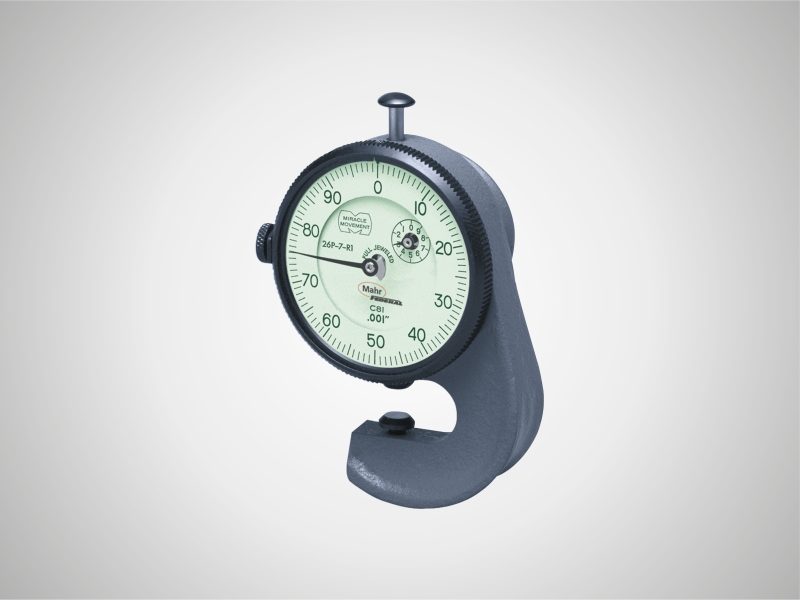

MARAMETER 26P-7 PORTABLE THICKNESS GAGES

  • Push down movement
  • Molded body fits shape of hand
  • Built-in indicator
  • Gage is normally open for easy part entry
  • Push down button to close the contacts
  • Rugged and compact for portable use
  • 6.3 mm / .25“ diameter, flat steel contacts

Technical data

Order no. Product type Measuring range inches Graduation value inch Probe_path_inch Size of measuring surface in mm
2050481
26P-7
0 – .30″
.001″
0.25 inch
6.3 mm / 0.25″ diameter
