MARAMETER 49P - GAGE FOR EXTERNAL MEASUREMENT

MARAMETER 49P – GAGE FOR EXTERNAL MEASUREMENT

MARAMETER 49P-2M GAGE FOR EXTERNAL MEASUREMENT Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs Retraction lever is conveniently located for one hand operation 0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available Continuous reading dials with revolution counters normally

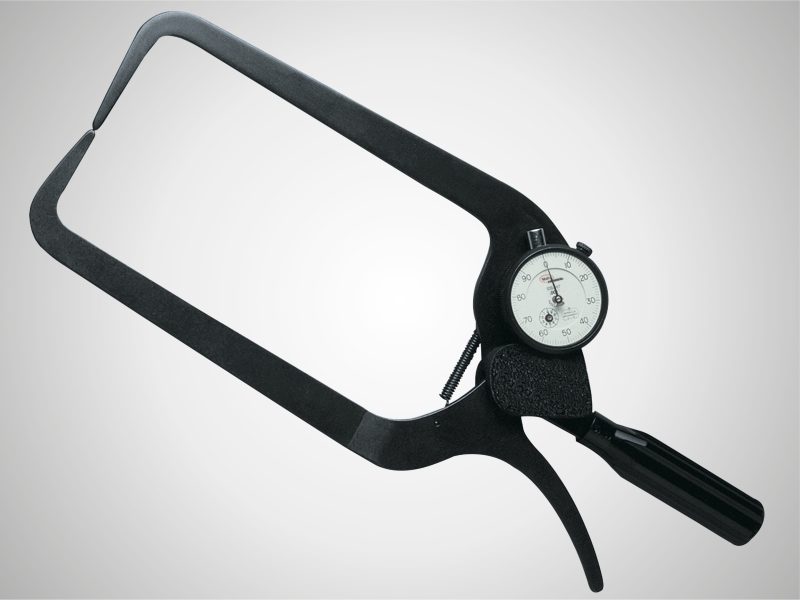

MARAMETER 49P-2M GAGE FOR EXTERNAL MEASUREMENT

Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs
Retraction lever is conveniently located for one hand operation
0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available
Continuous reading dials with revolution counters normally provided
Cylindrical radius steel contact tips normally furnished

External measurement

Technical data

Order no.	Product type	Measuring range mm	Throat depth mm	Graduation value mm	Measuring force (N)	Measuring depth mm	Mounting hole for indicator
2050704	49P-17M	0 – 50	100 mm	0.02 mm	–	100 mm	0.375 inch
2050709	49P-19M	0 – 50	200 mm	0.02 mm	–	200 mm	0.375 inch
2050710	49P-1M	0 – 75	100 mm	0.1 mm	–	100 mm	0.375 inch
2050718	49P-2M	0 – 75	200 mm	0.1 mm	–	200 mm	0.375 inch

MARAMETER 49P-2 GAGE FOR EXTERNAL MEASUREMENT

Generous clearance on jaws reaches over non-measured part protrusions for easy access to areas where thickness must meet critical dimensional specs
Retraction lever is conveniently located for one hand operation
0.02 mm or 0.1 mm / .01“, .001“, or 1/64“ grads. available
Continuous reading dials with revolution counters normally provided
Cylindrical radius steel contact tips normally furnished

External measurement

Technical data

Order no.	Product type	Measuring range inches	Throat depth inch	Graduation value inch	Measuring force (N)	Mounting hole for indicator
2050696	49P-1	0 – 3″	4 inch	.01″	–	0.375 inch
2050702	49P-17	0 – 2″	4 inch	.001″	–	0.375 inch
2050706	49P-19	0 – 2″	8 inch	.001″	–	0.375 inch
2050711	49P-2	0 – 3″	8 inch	.01″	–	0.375 inch
