• Rugged, forged steel frame with heat insulators
  • Measuring spindle is mounted in long guideway with lever controlled retraction
  • Measuring spindle and anvil spindle have an M 2.5 connection thread, thus enabling the use of interchangeable anvils that are also used in dial indicators and dial comparators
  • Anvil spindle can easily be fine adjusted
  • Constant measuring force as a result of built-in spring, eliminating user influence
  • Maximum wear resistance due to non-contact positioning in conjunction with carbide tipped measuring faces

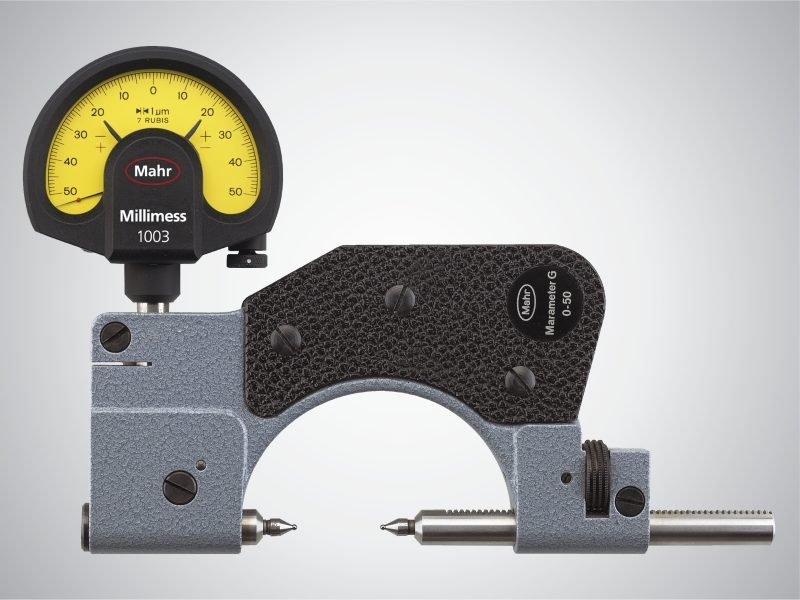

FG indicating snap gage

Technical data

Order no. Product type Application range mm Measuring span in mm Repeatability fw (µm) Measuring force
840 FG
0 – 50
2 mm
1 µm
7.5 N
840 FG
40 – 90
2.5 mm
1 µm
7.5 N
