Marcal Digital Caliper Data Interface | Gokul Traders

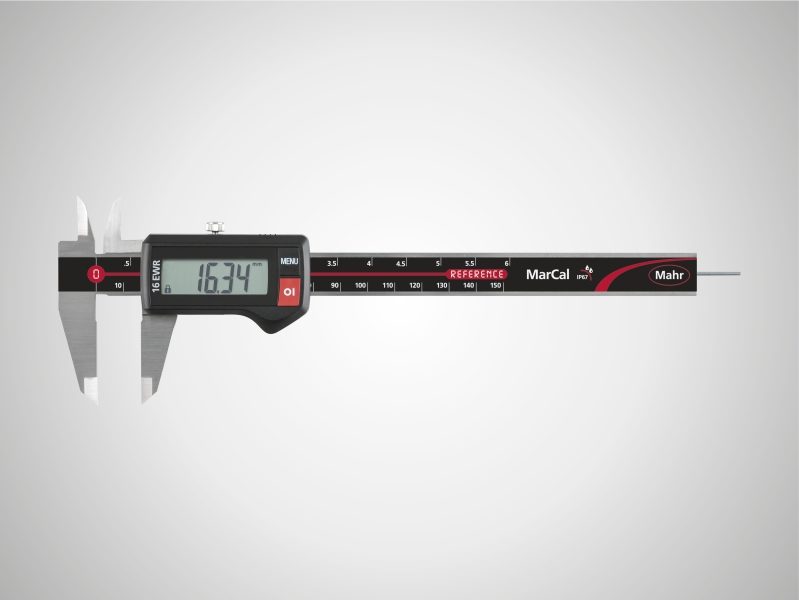

MARCAL 16 EWR DIGITAL CALIPER & DATA INTERFACE

High contrast analog display Locking screw above Lapped guideway Measuring blade for inside measurements Slide and beam made of hardened stainless steel Step measuring function Immediate measurements due to the Reference System Raised guideways for the protection of the scale Excellent resistance against dust, coolants and lubricants Dirt wipers are integrated in the slide none

High contrast analog display
Locking screw above
Lapped guideway
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Immediate measurements due to the Reference System
Raised guideways for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
none
IP 67
Battery
Instruction manual
Case
Battery life approx. 3 years

Height of digits

11 mm

Order no.	Measuring range mm	Measuring range inches	Resolution mm/inch	Error limit (mm)	Error limit inches	Standard	Friction wheel	Depth Rod
4103300	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	round
4103301	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	round
4103302	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	rectangular
4103303	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	rectangular
4103304	0 – 200	0 – 8″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	rectangular
4103305	0 – 200	0 – 8″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	rectangular
4103306	0 – 300	0 – 12″	0.01 / .0005″	0.04 mm	.0015″	Factory standard	no
4103307	0 – 300	0 – 12″	0.01 / .0005″	0.04 mm	.0015″	Factory standard	yes

Functions

ON/OFF
AUTO-ON / OFF
RESET (set display to zero)
PRESET (for entering a numerical value)
Reversal of counting direction
mm/inch
LOCK function (key lock)

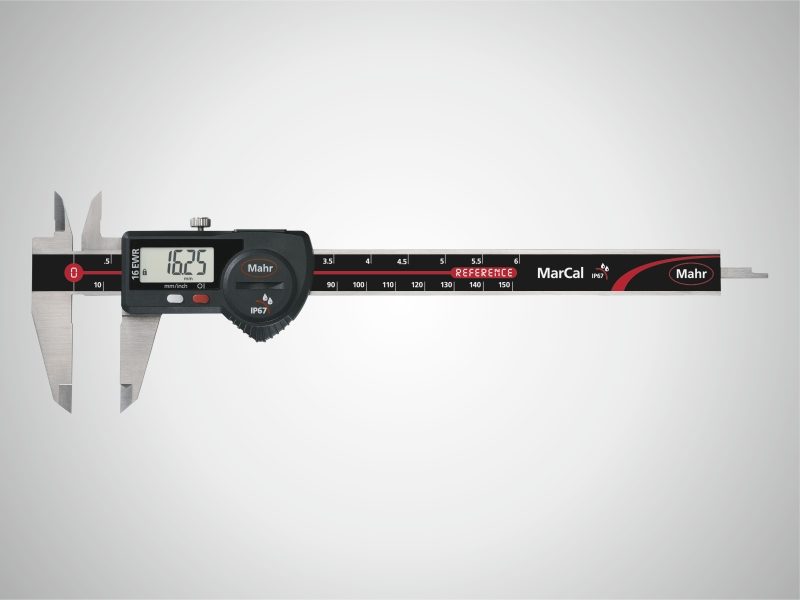

Digital Caliper, IP 67, Data interface

MARCAL 16 EWR DIGITAL CALIPER

High contrast analog display
Locking screw above
Lapped guideway
Measuring blade for inside measurements
Slide and beam made of hardened stainless steel
Step measuring function
Immediate measurements due to the Reference System
Raised guideways for the protection of the scale
Excellent resistance against dust, coolants and lubricants
Dirt wipers are integrated in the slide
USB
Opto RS232C
Digimatic
IP 67
Battery
Instruction manual
Case
Battery life approx. 3 years

Height of digits

8.5 mm

Order no.	Measuring range mm	Measuring range inches	Resolution mm/inch	Error limit (mm)	Error limit inches	Standard	Friction wheel	Depth Rod
4103064	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	round
4103065	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	round
4103066	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	rectangular
4103067	0 – 150	0 – 6″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	rectangular
4103068	0 – 200	0 – 8″	0.01 / .0005″	0.03 mm	.001″	DIN 862	no	rectangular
4103069	0 – 200	0 – 8″	0.01 / .0005″	0.03 mm	.001″	DIN 862	yes	rectangular
4103070	0 – 300	0 – 12″	0.01 / .0005″	0.04 mm	.0015″	Factory standard	no
4103071	0 – 300	0 – 12″	0.01 / .0005″	0.04 mm	.0015″	Factory standard	yes
