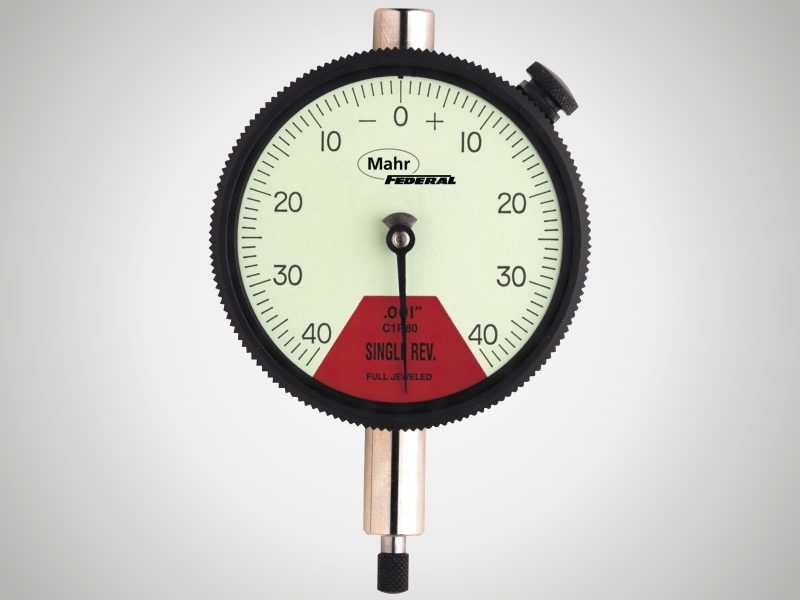

MARCATOR C1RN-40 DIAL INDICATOR

  • Nomatter how far out of tolerance a part may be, the needle of a one revolution indicator will always stay in the red, non-read zone — no passing zero again — no reading errors.
  • No limited contact travel
  • Shockproof “Following Movement”
  • Always keeps the hand within a single revolution
  • Alternate contact points, backs and other accessories are optionally available
  • Metric dials are yellow
  • One piece case design
  • Inserted precision bearings
  • Available in ANSI/AGD Group 2 size
  • Flat back
Dial Indicators

Technical data

Order no. Product type Measuring span (inches) Graduation value inch Type of dial face Standard Dial color
2014792
C1RN-80
.080″
.001″
40-0-40
ANSI
green
2014793
C1RN-40
.040″
.0005″
20-0-20
ANSI
green



MARCATOR M1RN-100 DIAL INDICATOR

  • Nomatter how far out of tolerance a part may be, the needle of a one revolution indicator will always stay in the red, non-read zone — no passing zero again — no reading errors.
  • No limited contact travel
  • Shockproof “Following Movement”
  • Always keeps the hand within a single revolution
  • Alternate contact points, backs and other accessories are optionally available
  • Metric dials are yellow
  • One piece case design
  • Inserted precision bearings
  • Available in ANSI/AGD Group 2 size
  • Flat back
Dial Indicators

Technical data

Order no. Product type Measuring span in mm Graduation value mm Type of dial face Standard Dial color
2014794
P1RN-200
2 mm
0.02 mm
100-0-100
ANSI
yellow
2014795
P1RN-100
1 mm
0.01 mm
50-0-50
ANSI
yellow
2014796
M1RN-200
2 mm
0.02 mm
100-0-100
ANSI
yellow
2014797
M1RN-100
1 mm
0.01 mm
50-0-50
ANSI
yellow
