MECHANICAL FORCE GAUGE

MECHANICAL FORCE GAUGE (Imada)

Product Overview

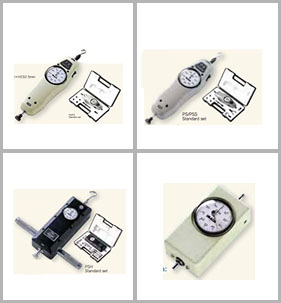

The Imada Mechanical Force Gauge series (including FB, PS, PSM, PSH, and UKT/UKK series models) is engineered for precision mechanical push and pull force measurement. Designed for reliable, battery-free operation, these analog force gauges feature a durable body and an easy-to-read dial display with real-time and peak hold reading modes.

Key Features & Capabilities

• Battery-Free Operation: Operates mechanically without requiring electrical power or battery charges.
• Durable Construction: Built with a sturdy body designed for industrial environments.
• Readability: Clear dial layout configured for easy force change reading.
• Reading Modes: Supports both Real-time and Peak hold reading methods (Selector type).

Technical Specifications & Series Data

FB Series (Economical Type)

• Capacity Range: 10N to 500N
• Accuracy: ±0.3% F.S. or less
• Division: 100 lines

#### Model Specifications

#### Export Model Lists (Metric & Imperial)

---

PS Series (Standard High-Accuracy Type)

• Capacity Range: 5N to 500N
• Accuracy: ±0.1% F.S. or less
• Division: 100 lines

#### Model Specifications

#### Export Model Lists (Metric & Imperial)

---

PSM Series (Precision Type)

• Capacity Range: 20N to 500N
• Accuracy: ±0.1% F.S. or less
• Division: 200 lines (high-resolution dial)

#### Model Specifications

#### Export Model Lists (Metric)

---

PSH Series (High Capacity Type)

• Capacity Range: 500N to 3000N
• Accuracy: ±0.1% F.S. or less
• Division: 100 lines

#### Model Specifications

#### Export Model Lists (Metric & Imperial)

---

UKT / UKK Series (Compact Type)

• Design: Ideal compact model for built-in equipment (UKT for tension, UKK for compression)
• Accuracy: ±0.3% F.S. or less
• Division: 100 lines
• Reading Method: Real time / Peak hold (memory pointer type)

#### Model Specifications

#### Export Model Lists (Metric & Imperial)
