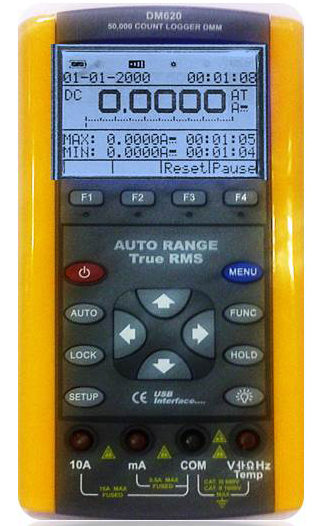

The METRIX+ DM 620 is a 50,000 count programmable data logger digital multimeter designed with an isolated USB interface and USB battery charger. Engineered for precise electrical measurements, it features True RMS measurements for AC, full auto range, auto calibration, and real-time clock and date capabilities.
- Display & Interface: Multi-display with analog bar graph and back-light display.
- Data Logging & Memory: Data logger memory of 18,000 points. Functions and ranges can be controlled from a PC via USB.
- Modes: Record (MIN, MAX, AVG), Relative (REF, DEF, ERR), Compare (GO-NOGO) mode, and Trend Plot mode.
- Measurement Functions: AC/DC voltage, AC/DC amperes, 10 MHz frequency counter, period, duty cycle, resistance, capacitance, continuity, diode test, and temperature (°C/°F) using a "K" type thermocouple or room temperature without a probe.
- Safety Standard: International Safety Standard IEC 1010-1 (EN 61010-1:1993 Over Voltage Category II & III).
- Additional Functions: Data holds and run mode, auto power off, low battery indication, and overload protection for all functions (including 10A).
- Power Requirement: 3.7V Li-ion Battery Pack
- Battery Life Time: 32 hrs typ.
- Dimensions / Weight: 200 x 105 x 34 mm
- Standard Accessories: Manual, Test Leads, Battery (Installed), Carrying Case, USB Cable, Demonstration S/W, Temperature probe & adaptor
