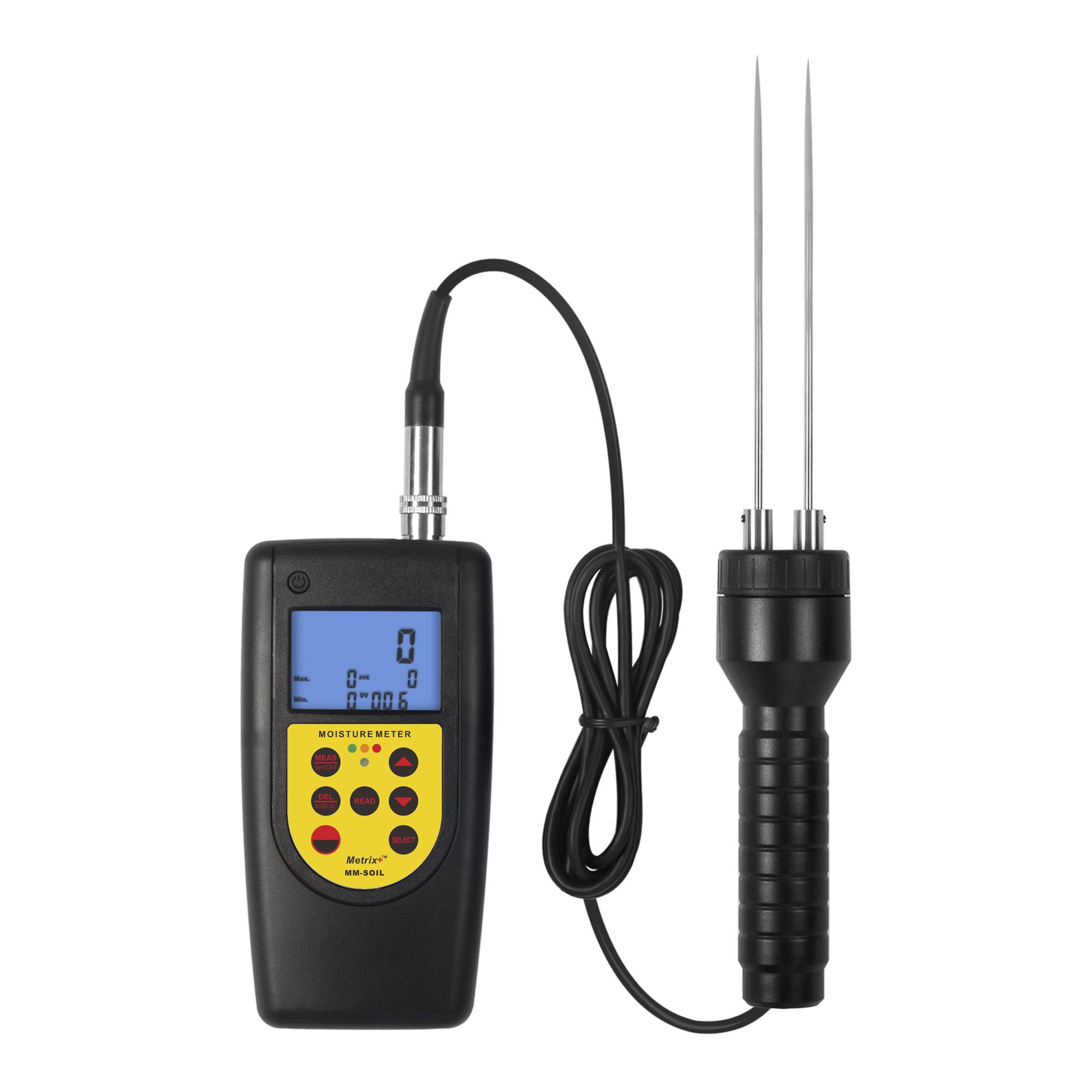

The Metrix+ MM-SOIL is a pin-type soil moisture meter designed for agricultural purposes. It measures the moisture content of soil by determining the electrical conductivity between its two pins.
Key Features & Capabilities
Wide measuring range and high resolution
Statistics display on screen (Last Value, Mean Value, Max Value, Min Value, Number of readings)
Data storage and recall with a memory capacity of 99 groups
LED indication for moisture content:
Green LED: Safe, air-dry state
Yellow LED: Borderline state
Red LED: Damp state
Technical Specifications
Parameter
Specification
Model
Metrix+ MM-SOIL
Range
0 ~ 80%
Accuracy
±(0.5%n + 1)
Resolution
0.1
Display
LCD
Statistics
Last Value / Mean Value / Max Value / Min Value / Number of readings
Memory
99 groups
Operating Conditions
Temperature: 0 ~ 50°C<br>Humidity: <90% RH
Power Supply
4 x 1.5V AAA (UM – 4) batteries
Dimensions
Main unit: 140 x 73 x 35 mm<br>Sensor: 320 x 44 x 44 mm<br>Length of pin: 150 mm<br>Diameter of pin: 3 mm<br>Distance between two pins: 18 mm
Weight
280g (not including batteries)
Standard Accessories
Main unit, sensor, carrying case, operation manual
