METRIX+ UTM 5

Code:

▪Preset material velocities for easy selection with custom velocity input.
▪Inbuilt self-calibrator and simple calibration function.
▪Automatic power off.

Click to Expand

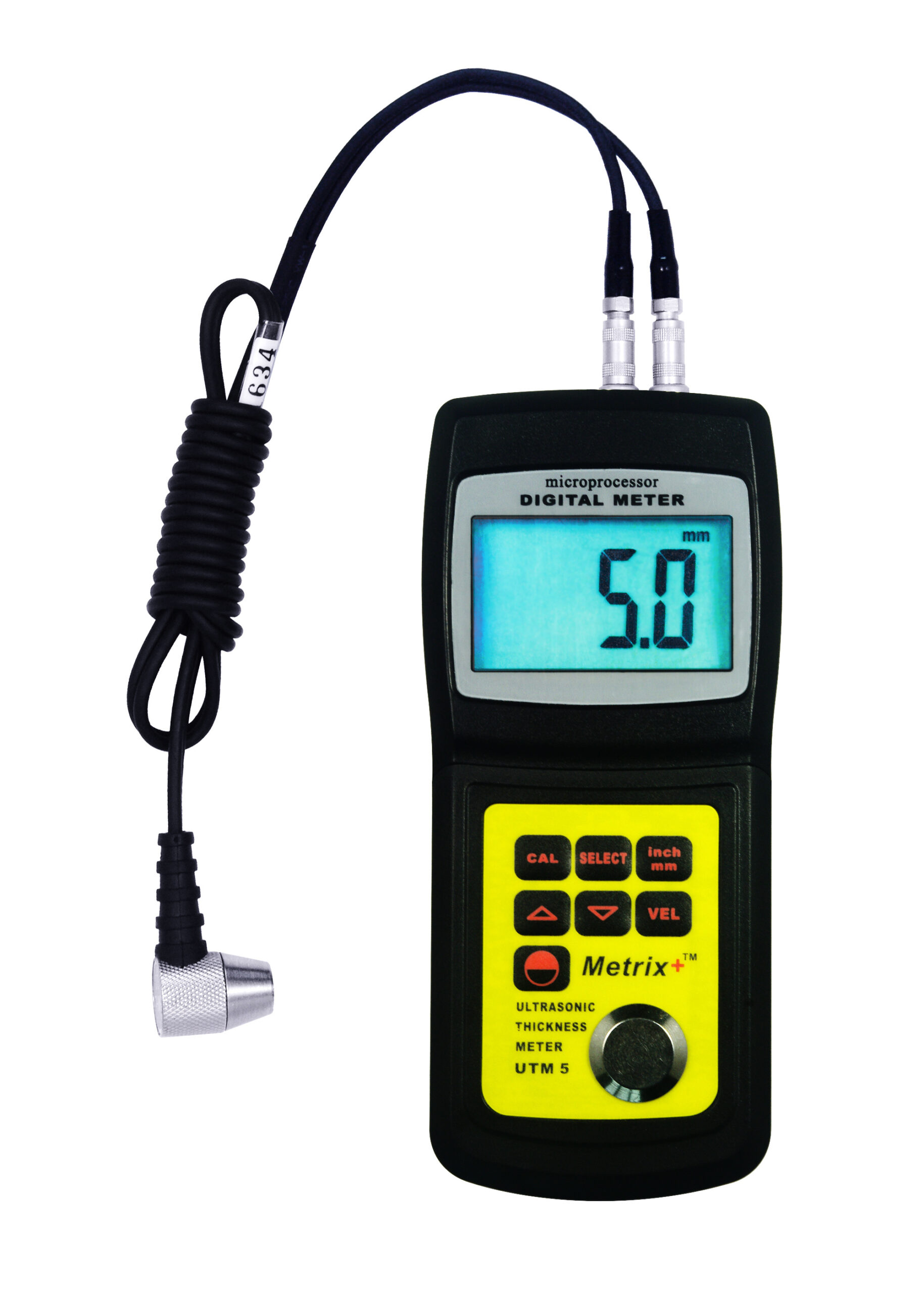

METRIX+ UTM 5 Ultrasonic Thickness Gauge

Product Overview

The METRIX+ UTM 5 is an easy-to-use, microprocessor-based digital ultrasonic thickness gauge designed for accurate non-destructive measurement of sample thickness. By measuring the transit time of a sound pulse generated by an ultrasonic transducer through a test piece, it determines thickness by reflecting from the inside surface or far wall.

Key Features & Capabilities

Preset material velocities for easy selection alongside custom velocity input
Inbuilt self-calibrator and simplified calibration functionality
Automatic power-off feature to conserve battery life
Optional PC interface capability for data logging

Technical Specifications

Parameter	Specification
Model	Metrix+ UTM 5
Display	Backlit LCD
Measuring range	1 – 200mm (45# Steel)
Accuracy	±0.5%n + 0.1mm
Resolution	0.1mm
Sound Velocity	500 ~ 9000 m/s
Lower limit of pipes	Φ20 x 3.0 mm (determined by probe type)
Operating conditions	0 ~ 40°C, Humidity < 80%
Power supply	1.5V x 4 AAA (UM 4) batteries
Dimensions & Weight	145 x 65 x 25 mm; 145g (without battery)
Standard Accessories	Ultrasonic sensor, couplant, user manual & hard carry case
Optional Accessories	1. 6MM probe for small & curved surface/pipes<br>2. 8MM probe (Standard probe)<br>3. HT Ceramic probe for high-temperature surfaces<br>4. PC interface (cable and software)<br>5. Calibration step block (4-step and 10-step)

Applications & Industries

Applicable for measuring the thickness of various materials including steel, cast iron, aluminium, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron. It is widely used across all kinds of industries, including petroleum, chemical, metallurgical, shipbuilding, and aerospace sectors, to monitor thinning caused by corrosion in tubes and pressure vessels, as well as to measure plates and processing parts.
