MICROMAR 40 EWR – DIGITAL OUTSIDE MICROMETER, IP 65

MICROMAR 40 EWR DIGITAL OUTSIDE MICROMETER High contrast analog display Stainless spindle is hardened throughout and ground Spindle and anvil are carbide tipped Rapid drive Ratchet is integrated in the thimble Lacquered steel frame, heat insulated Digimatic Opto RS232C USB Battery life approx. 2 years IP 65 instruction manual battery setting standard (measuring range of

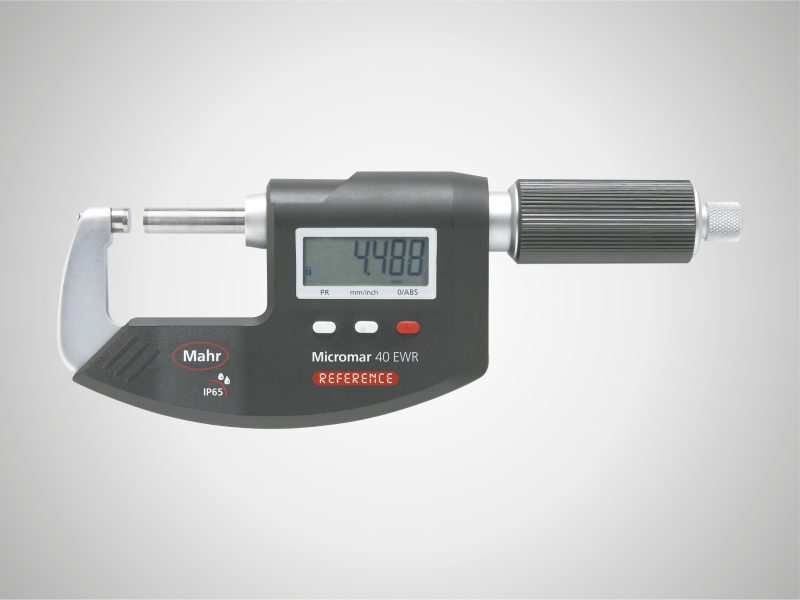

MICROMAR 40 EWR DIGITAL OUTSIDE MICROMETER

  • High contrast analog display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • Digimatic
  • Opto RS232C
  • USB
  • Battery life approx. 2 years
  • IP 65
  • instruction manual
  • battery
  • setting standard (measuring range of 25-50 mm)
  • case

Height of digits

  • 8.5 mm
 Digital outside micrometer
 Digital outside micrometer  Digital outside micrometer  Digital outside micrometer  Digital outside micrometer  Digital outside micrometer

Technical data

Order no. Measuring range mm Measuring range inches Resolution mm/inch Error limit µm Notes error limit Spindle diameter Spindle thread pitch_mm Measuring force (N)
<4151705
0 – 25
0 – 1″
0.001 / .00005″
2 µm
at fixed zero point
6.5 mm
0.635 mm
5 – 10
4151706
25 – 50
1 – 2″
0.001 / .00005″
2 µm
at fixed zero point
6.5 mm
0.635 mm
5 – 10
4151707
50 – 75
2 – 3″
0.001 / .00005″
3 µm
at fixed zero point
6.5 mm
0.635 mm
5 – 10
4151708
75 – 100
3 – 4″
0.001 / .00005″
3 µm
at fixed zero point
6.5 mm
0.635 mm
5 – 10
4151740
100 – 125
4 – 5″
0.001 / .00005″
6 µm
6.5 mm
0.635 mm
5 – 10
4151741
125 – 150
5 – 6″
0.001 / .00005″
6 µm
6.5 mm
0.635 mm
5 – 10
4151742
150 – 175
6 – 7″
0.001 / .00005″
7 µm
6.5 mm
0.635 mm
5 – 10
4151743
175 – 200
7 – 8″
0.001 / .00005″
7 µm
6.5 mm
0.635 mm
5 – 10

Functions

  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to preset)
  • mm/inch
  • PRESET (for entering a numerical value)
  • LOCK function (key lock)
  • DATA (data transmission via connection cable)



MICROMAR 40 EWR DIGITAL OUTSIDE MICROMETER SET

  • High contrast analog display
  • Stainless spindle is hardened throughout and ground
  • Spindle and anvil are carbide tipped
  • Rapid drive
  • Ratchet is integrated in the thimble
  • Lacquered steel frame, heat insulated
  • Digimati
  • Opto RS232C
  • USB
  • Battery life approx. 2 years
  • IP 65
  • instruction manual
  • battery
  • setting values
  • case

Height of digits

  • 8.5mm
 Digital outside micrometer
 Digital outside micrometer  Digital outside micrometer  Digital outside micrometer  Digital outside micrometer  Digital outside micrometer

Technical data

Order no. Measuring range mm Measuring range inches Resolution mm/inch Spindle diameter Spindle thread pitch_mm Measuring force (N)
4151709
0 – 100
0 – 4″
0.001 / .00005″
6.5 mm
0.635 mm
5 – 10

Functions

  • AUTO-ON / OFF
  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to preset)
  • mm/inch
  • Lock/Unlock
  • PRESET (for entering a numerical value)
  • DATA (data transmission via connection cable)
