Product Overview

The Mitutoyo Series 150 comprises medium-sized standard type micrometer heads designed for precision measurement integration into machinery, jigs, and measuring instruments. Featuring a measuring range of 0–1" with an accuracy of ±.0001" and a spindle pitch of .025", these micrometer heads offer robust construction and reliable positioning across various configurations.

Key Features & Capabilities

• Measuring Range: 0 – 1"
• Accuracy: ±.0001"
• Stem Diameter: .375"
• Spindle Pitch: .025"
• Graduation: .001" or .0001" (depending on model)

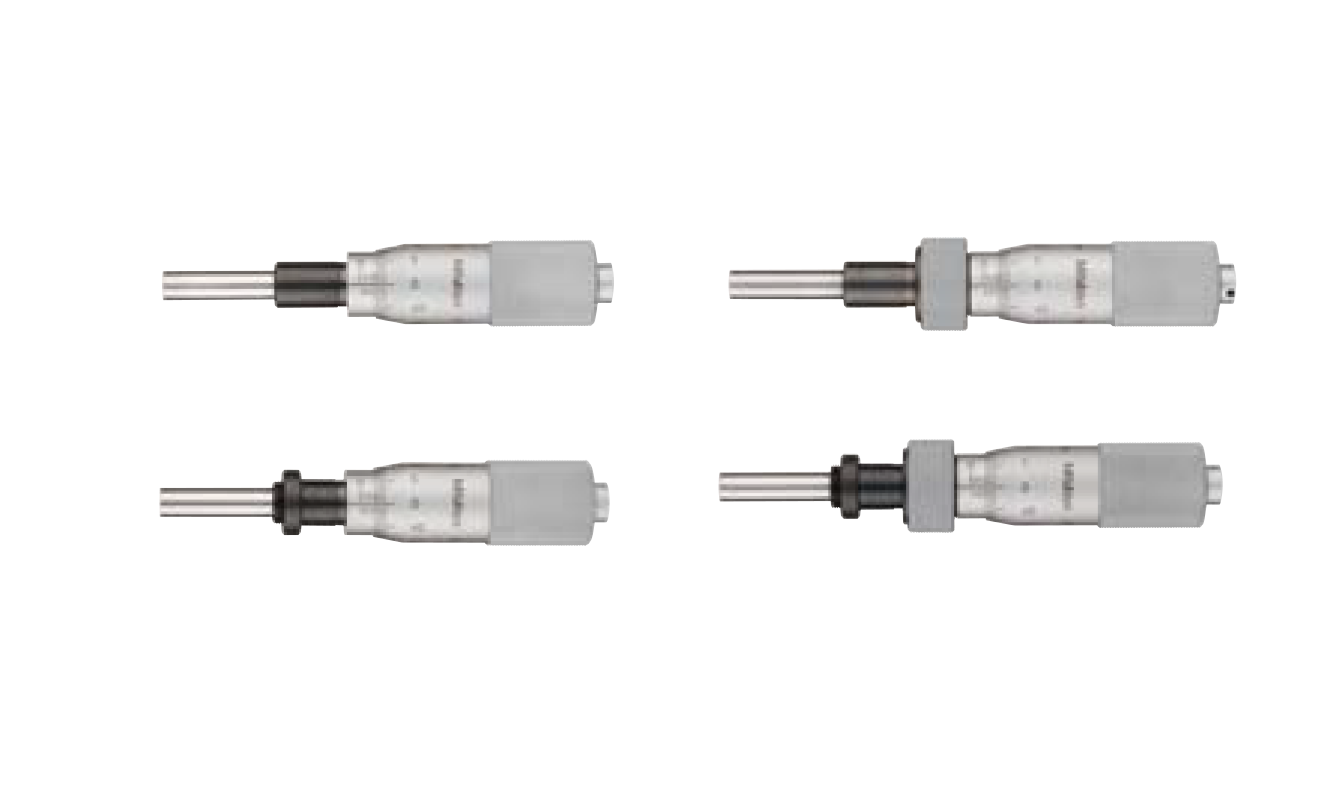

• Stem Variations: Available in plain stem or with clamp nut (some models feature spindle locks)
• Spindle End Options: Flat (carbide tip), Spherical (SR4, carbide tip), or Flat (without carbide tip)
• Special Configurations: Standard, Reverse graduation, With vernier (.0001"), Without ratchet stop, and Long spindle options available

Technical Specifications

\ with spindle lock \\ made-to-order models*
