VERSA CONTROLS PEIZO TRICOLOUR BARGRAPH COLUMN

Name: VERSA CONTROLS PEIZO TRICOLOUR BARGRAPH COLUMN
Brand: Versa Controls
SKU: RS-232 Port

Code:

Specifications: Column Pneumatic Type Standard/Fanuc (Column transmit data (reading) to Fanuc controller O-i / Power Mate / 16 / 18 Series) Input Channels 1 Air Cut-Off Without Air Cut-Off / With Air Cut –Off Available (Air gets ON when Plug is placed in the Job else Air will remain OFF). Resolution 0.1μm/ 0.5μm/ 1μm/ 5μm

f in

Click to Expand

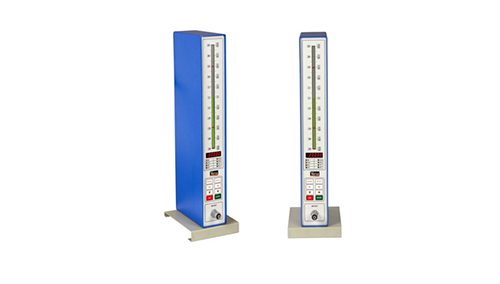

VERSA CONTROLS PEIZO TRICOLOUR BARGRAPH COLUMN

Product Overview

The Versa Controls Peizo Tricolour Bargraph Column is a precision pneumatic measuring column designed for high-accuracy industrial dimensional metrology. Manufactured by Versa Controls and supplied by Gokul Traders, this device features a 1-channel pneumatic input and provides integrated data transmission capabilities compatible with Fanuc controllers.

Key Features & Capabilities

Display & Indicators: Features a bright tricolour bargraph alongside a 6-digit 7-segment LED display with Reject, OK, and Rework indication modes.
Controller Integration: Standard/Fanuc type data transmission allowing direct reading transfer to Fanuc controller O-i, Power Mate, 16, and 18 Series.
Air Cut-Off Option: Available with or without air cut-off functionality (air automatically turns on when the plug is placed in the job; otherwise, it remains off).
Measurement Modes: Supports Current (Cur), Maximum (Max), Minimum (Min), and Difference (Diff) measurement modes for ID/OD applications.
Calibration & Scaling: Supports single or double calibration with auto/manual scaling options.
Connectivity: Equipped with an RS-232 communication port (1 or 2 ports depending on customer specification) with optional wireless modules.
External Controls & Outputs: Includes footswitch availability, 3 open collector outputs provided on a DB15 connector, and a connector for connecting an external pressure sensor.

Technical Specifications

Parameter	Specification
Column Type	Pneumatic
System Compatibility	Standard / Fanuc controller (O-i / Power Mate / 16 / 18 Series)
Input Channels	1
Air Cut-Off	Without Air Cut-Off / With Air Cut-Off Available
Resolution	0.1μm / 0.5μm / 1μm / 5μm
Units	mm / Inch
Display	6-digit 7 segments
Setup Configurations	10
Measurement Modes	Cur, Max, Min, Diff
Application Modes	ID / OD
Indications	Reject, OK, Rework
Calibration	Single / Double calibration
Scaling	Auto / Manual
Communication Port	RS-232 (Wireless modules optional)
RS-232 Port Options	1 or 2 (Customer specific)
Data Transmission	Auto / Manual
Footswitch	Available
Outputs	3 open collector outputs on DB15
Pressure Sensor	Connector available for connecting Pressure Sensor
