INSIZE DIGITAL MAGNIFIER (CODE 7526-D5)

Code:

▪720P60 (close view) and 1080P30 (far view) cameras
▪Double autofocus
▪26 color modes can be switched to meet the needs of different people
▪Adopt folding bracket
▪Detachable handle design, suitable for left-handed or right-handed use
▪TV and HDMI ports to TV and display
▪Automatic shutdown after 3 minutes

Click to Expand

INSIZE DIGITAL MAGNIFIER (CODE 7526-D5)

Product Overview

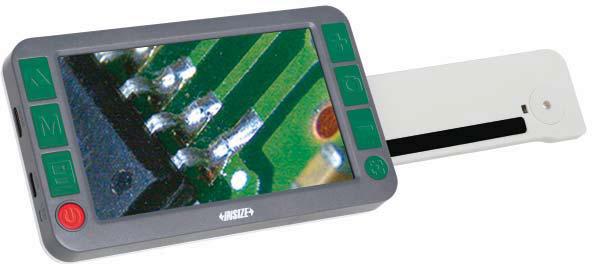

The INSIZE Digital Magnifier (Code 7526-D5) is an advanced optical testing instrument equipped with dual high-definition cameras and double autofocus functionality. Designed for precision inspection, it features a 4.3-inch display, a flexible folding bracket, and a detachable handle configuration suitable for both left-handed and right-handed operators.

Key Features & Capabilities

Dual Camera System: Integrates a 720P60 close-view camera and a 1080P30 far-view camera with double autofocus.
Display Modes: Includes 26 switchable color modes (such as monochrome, negative mode, color enhancement, and various text/background contrast combinations) to accommodate different user visual requirements.
Ergonomic Design: Features an adjustable folding bracket and a detachable handle for versatile operation.
Output & Connectivity: Equipped with TV and HDMI ports for external display integration, plus a Type-C charging port.
Functional Tools: Supports screen freezing, image moving, photo playback, high-definition storage, and on-screen horizontal/vertical red reference lines.
Power Management: Powered by a 2500mAh lithium battery providing approximately 4 hours of continuous operation, complete with an automatic shutdown feature after 3 minutes of inactivity.

Technical Specifications

Parameter	Specification
Screen size	4.3 inch
Screen resolution	480×272
Magnification	2X-32X
Close View pixel	8M
Far View Pixel	8M
Focus	Manual / automatic
Color mode	26 modes (color mode, color enhancement mode, negative mode, monochrome mode, black on white, white on black, blue on white, white on blue, yellow on black, black on yellow, yellow on blue, blue on yellow, green on white, white on green, orange on white, white on orange, red on black, black on red, orange on black, black on orange, yellow on green, green on yellow, red on white, white on red, yellow on white, white on yellow)

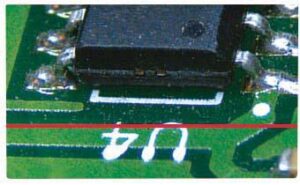

Line	Horizontal & vertical red lines
Function	Screen freezing, image moving, photo playback, and high-definition storage
Output	TV & HDMI
Storage	Supports up to 32G TF card
Charging port	Type-C
Lithium battery	2500mAh (for 4 hours working)
Dimension (LxWxH)	145x30x85 mm (when the handle is folded)
Weight	275 g
