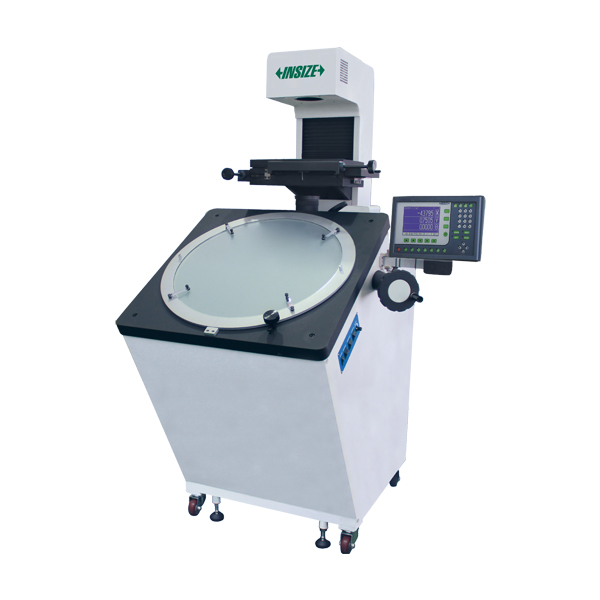

The INSIZE Horizontal Profile Projector is a high-precision testing and measurement instrument designed for industrial metrology applications. Featuring a robust construction with a metal stage size of 404×265 mm and a 270×170 mm glass stage, this profile projector delivers reliable, erect-image optical inspection with integrated digital readouts and data export capabilities. Available in standard (ISP-A6000) and edge-detector equipped (ISP-A6000E) variants.
- Digital Readout & Control: Touch button interface with support for USB data output to Excel and CAD, plus graphical diagram display.
- Optical Projection Screen: Features a Ø600 mm screen with rotation range of 0°~360°, 1° or 0.01° resolution, and cross-hair reference lines.
- Illumination System:
- Contour illumination via 24V/150W halogen lamp with adjustable brightness.
- Surface illumination via 24V/150W halogen lamp.
- Data Processing & Measurement Functions:
- Measure coordinates of points and lines.
- Measure center coordinates and radius of circles using three points.
- Measure distances between two objects and angles using four points or two lines.
- Coordinate transformation.
- Automatic measurement object selection based on selective points with on-screen results.
- Programming capabilities for batch measurements.
