INSIZE TABLE MAGNIFIER WITH ILLUMINATION (CODE 7516-5D)

Code:

▪LED illumination, working life 20000h
▪Resin lens

Click to Expand

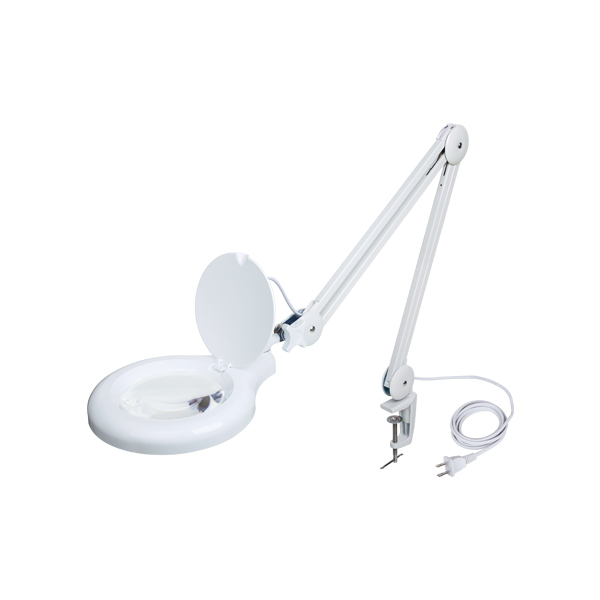

INSIZE TABLE MAGNIFIER WITH ILLUMINATION (CODE 7516-5D)

Product Overview

The INSIZE Table Magnifier with Illumination (Code 7516-5D) is a professional-grade inspection and magnification tool featuring integrated LED lighting. Designed for precision work, it mounts securely to tables via a clamping holder with a clamping range of 10~60mm and features an articulated adjustable arm structure (400mm and 380mm arm dimensions).

Key Features & Capabilities

LED Illumination: Equipped with 60 pcs LED providing 420lm illumination and a working life of 20000 hours.
Protective Cover: Includes an integrated lens cover to protect the optical lens when not in use.
Mounting & Positioning: Features a sturdy clamping holder (10~60mm clamping range) and flexible mechanical arm for easy positioning.
Power Connection: Supplied with an integrated power cable and European power plug.

Technical Specifications

Parameter	Specification
Magnification	2.25X
Diopter	5D
Lens Diameter	Ø122mm
Illumination	Power: 7W, Illumination: 420lm (60 pcs LED)
Power Supply	100~240V, 50~60Hz
Clamping Range	10~60mm
