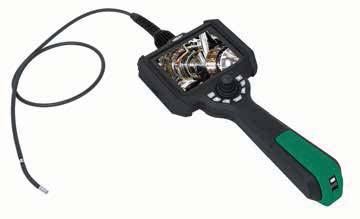

The INSIZE ISV-K series is a professional-grade videoscope system designed for high-precision visual inspection. The unit features a 5" high-definition IPS LCD display and is controlled via a manual joystick. The system utilizes a tungsten wire-weaved cable and a sapphire glass lens, providing robust performance in industrial environments. It supports image and video capture, with real-time image transmission capabilities via Wi-Fi (Android OS), USB, and HDMI.
- Display & Control: 5" high-definition IPS LCD with manual joystick for precise navigation.
- Imaging: Supports image zoom (1X, 2X, 3X, 4X), image freezing, flip-over, playback, and an integrated analog ruler.
- Connectivity: Wi-Fi (Android OS), USB, and HDMI output.
- Construction: Tungsten wire-weaved cable and sapphire glass lens.
- Power: Rechargeable lithium battery with a working time of ≥ 4 hours; supports continuous operation via AC/DC adapter.
- Storage: External memory card support (32G SD card included).
- Standard Delivery: Includes main unit, 32G SD card, card reader, USB cable, tripod, and AC/DC adapter.
General Specifications
- File Format: Picture: JPG, Video: MP4
- Weight: 1000g
- Operating Temperature: -20~70°C
- Storage Temperature: -20~60°C
- Main Unit Operating Temp: -10~50°C (no preheat)
- Relative Humidity: Maximum 90%, no condensation
- Temperature Alarm: ISV-K-HTALARM (Factory installed, for ISV-K3915 and ISV-K6015)
- Hook: ISV-K-HOOK (Factory installed, for ISV-K3915 and ISV-K6015)
- Magnet: ISV-K-MAGMET (Factory installed, for ISV-K3915 and ISV-K6015)
- Clamp: ISV-K-CLAMP
