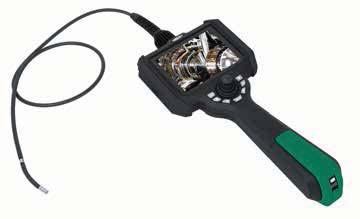

The INSIZE ISV-L is a high-definition videoscope system designed for precision inspection. The system features a 5" IPS HD display and a manual joystick for intuitive control. It supports real-time image transmission via WIFI (Android OS), USB, and HDMI. The main unit is powered by a rechargeable lithium battery with a minimum operating time of 4 hours, or via an AC/DC adapter for continuous operation.
- Display: 5" high-definition LCD (1024×720 resolution).
- Image Control: Features include freeze, flip over, playback, and analog ruler.
- Image Processing: Digital zoom (1X, 2X, 3X, 4X).
- Data Management: Supports image and video capture (MP4 format) stored on an SD card.
- Connectivity: WIFI (Android only), USB, and HDMI output.
- Operation Environment:
- Main unit operating temperature: -10~50°C (no preheat).
- Storage temperature: -20~70°C.
- Relative humidity: Maximum 90%, no condensation.
- Standard Delivery: Includes main unit, 32G SD card, card reader, USB cable, tripod, and AC/DC adapter.
The ISV-L system supports various interchangeable cable types, including one-direction (no bending), two-direction bending, and four-direction bending, available in both front-view and side-view orientations.
One-Direction Cable (No Bending), Front View
Two-Direction Bending Cable, Front View
Four-Direction Bending Cable, Front View
Two-Direction Bending Cable, Side View
Four-Direction Bending Cable, Side View
- Temperature Alarm: ISV-L-HTALARM (Factory installed; for Ø3.9mm, Ø4.5mm, and Ø6.0mm cables).
- Hook: ISV-L-HOOK (Factory installed; for Ø3.9mm, Ø4.5mm, and Ø6.0mm cables).
- Magnet: ISV-L-MAGNET (Factory installed; for Ø3.9mm, Ø4.5mm, and Ø6.0mm cables).
- Clamp: ISV-L-CLAMP.
