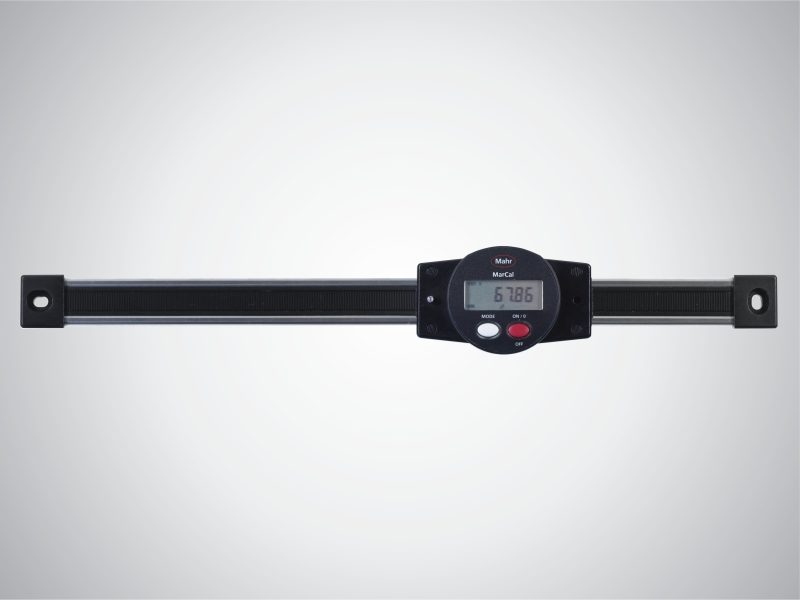

MARCAL 31 EW DIGITAL LINEAR MACHINE SCALE

MARCAL 31 EW DIGITAL LINEAR MACHINE SCALE

Control panel and display unit can be rotated for horizontal or vertical installation High contrast analog display Slide and beam made of hardened stainless steel Raised guideway for the protection of the scale Dirt wipers are integrated in the slide USB Opto RS232C IP 54 drive-type device instruction manual battery Battery life approx. 3 years

Control panel and display unit can be rotated for horizontal or vertical installation
High contrast analog display
Slide and beam made of hardened stainless steel
Raised guideway for the protection of the scale
Dirt wipers are integrated in the slide
USB
Opto RS232C
IP 54
drive-type device
instruction manual
battery
Battery life approx. 3 years

Height of digits

6 mm

Technical Data

Order no.	Measuring range	Resolution mm/inch	Error limit (mm)	Error limit inches	Standard
4104100	150 mm	0.01 / .0005″	0.03 mm	.001″	Factory standard
4104101	200 mm	0.01 / .0005″	0.03 mm	.001″	Factory standard
4104102	300 mm	0.01 / .0005″	0.04 mm	.0015″	Factory standard
4104103	600 mm	0.01 / .0005″	0.05 mm	.002″	Factory standard
