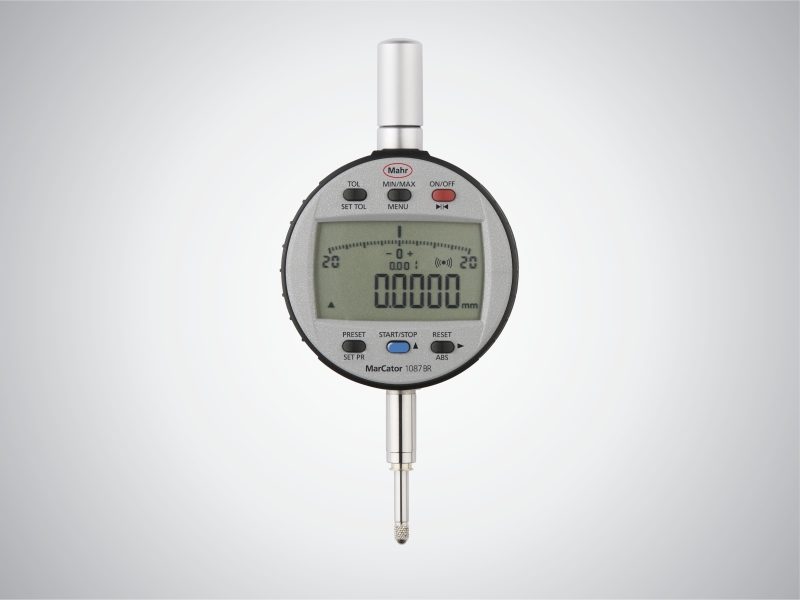

MARCATOR 1087 BRI DIGITAL INDICATOR

  • Integrated wireless transmitter
  • High-contrast LCD display
  • Operating and display unit (bezel) can be rotated through 280°
  • Lifter protection cap on the measuring spindle
  • Clamping shaft and measuring pin made of hardened stainless steel
  • Immediate measurements due to the Reference System



Technical data

Order no. Product type Measuring span in mm Measuring span (inches) Resolution Resolution inches Graduation value mm Graduation value inch Range of analog display mm Range of analog display inches Error limit (mm) Repeatability mm Standard Measuring force (N) IP protection category Height of digits
4337664
1087 BRi
12.5 mm
.5″
0.001 mm / 0.001 mm / 0.002 mm / 0.005 mm / 0.01 mm
.00002″ / .00005″ / .0001″ / .0002″ / .0005″
0,001 / 0,002 / 0,005 / 0,01 / 0,02 / 0,05
.00005″ / .0001” / .0002” / .0005″ / .001″ / .002″
± 0,01 / ± 0,02 / ± 0,04 / ± 0,1 / ± 0,2
± .0004″ / ± .001” / ± .002″ / ± .004″ / ± .01”
0.004 mm
0.001 mm
Factory standard
0.65 – 0.9
IP 42
8.5 mm

Functions

  • ON/OFF
  • RESET (set display to zero)
  • mm/inch
  • PRESET (enter anumerical value) from range 500 mm
  • Reversal of counting direction
  • TOL (enter tolerance limit values)
  • START/STOP search for reversal point
  • MAX/MIN memory for searching the reversal point
  • ABS (display can be set to zero without losing reference to preset)
  • 0 (set the analog display to zero)
  • DATA (data transmission via connection cable)
  • Factor (adjustable)
  • LOCK (individual button lock)
