MARCATOR – DIAL INDICATOR, MM

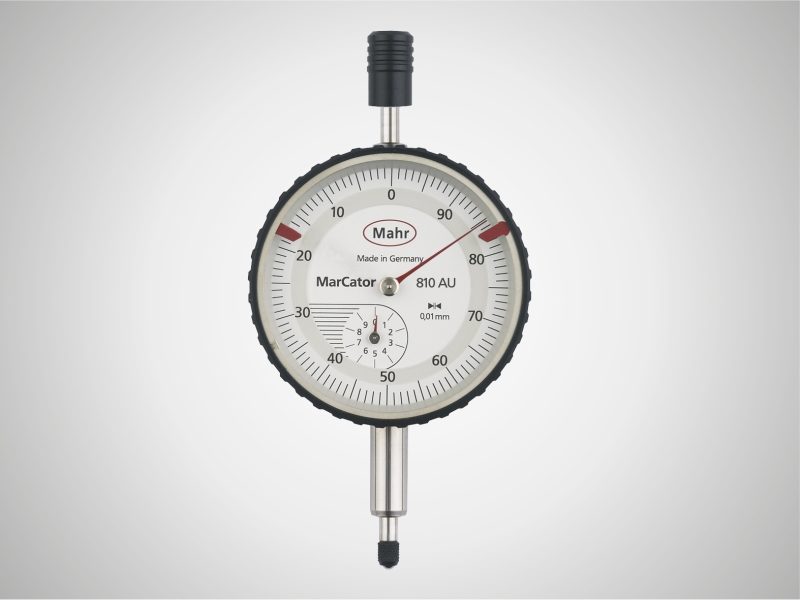

MARCATOR 810 AU PRECISION DIAL INDICATOR
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
 |
Technical data
| Order no. | Product type | Measuring span in mm | Graduation value mm | Type of dial face | Range per rev. in mm | Error limit measuring range µm | Error limit 1 revolution µm | Error limit 1/2 revolution µm | Error limit 1/10 revolution µm | Hysteresis fu (µm) | Repeatability fw (µm) | Standard | Overtravel mm | Scale diameter | Dial color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4311000 |
810 S
|
10 mm
|
0.01 mm
|
0 – 100
|
1 mm
|
15 µm
|
10 µm
|
9 µm
|
5 µm
|
3 µm
|
3 µm
|
DIN 878
|
0.1 mm
|
50 mm
|
white
|
| 4311050 |
810 A
|
10 mm
|
0.01 mm
|
0 – 100
|
1 mm
|
15 µm
|
10 µm
|
9 µm
|
5 µm
|
3 µm
|
3 µm
|
DIN 878
|
0.1 mm
|
50 mm
|
white
|
| 4311060 |
810 AT
|
10 mm
|
0.01 mm
|
100 – 0
|
1 mm
|
15 µm
|
10 µm
|
9 µm
|
5 µm
|
3 µm
|
3 µm
|
DIN 878
|
0.8 mm
|
50 mm
|
white
|
| 4321000 |
810 SV
|
40 mm
|
0.01 mm
|
0 – 100
|
1 mm
|
25 µm
|
15 µm
|
10 µm
|
5 µm
|
6 µm
|
3 µm
|
Factory standard
|
0.1 mm
|
50 mm
|
white
|
| 4329050 |
810 AU
|
10 mm
|
0.01 mm
|
100 – 0
|
1 mm
|
15 µm
|
10 µm
|
9 µm
|
5 µm
|
5 µm
|
5 µm
|
Factory standard
|
0.1 mm
|
50 mm
|
white
|

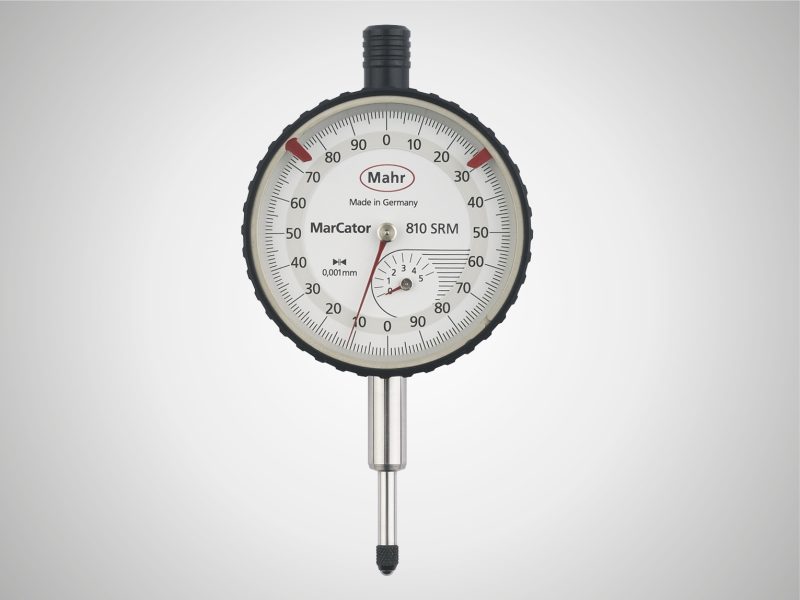

MARCATOR 810 SRM PRECISION DIAL INDICATOR
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
 |
Technical data
| Order no. | Product type | Measuring span in mm | Graduation value mm | Type of dial face | Range per rev. in mm | Error limit measuring range µm | Error limit 1 revolution µm | Error limit 1/2 revolution µm | Error limit 1/10 revolution µm | Hysteresis fu (µm) | Repeatability fw (µm) | Standard | Overtravel mm | Scale diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4311070 |
810 SM
|
1 mm
|
0.001 mm
|
0-100
|
0.1 mm
|
4 µm
|
3 µm
|
2 µm
|
1 µm
|
1.5 µm
|
1.5 µm
|
Factory standard
|
4 mm
|
50 mm
|
| 4311080 |
810 SRM
|
5 mm
|
0.001 mm
|
0-100-0
|
0.2 mm
|
10 µm
|
5 µm
|
3 µm
|
2 µm
|
3 µm
|
3 µm
|
Factory standard
|
0.1 mm
|
50 mm
|

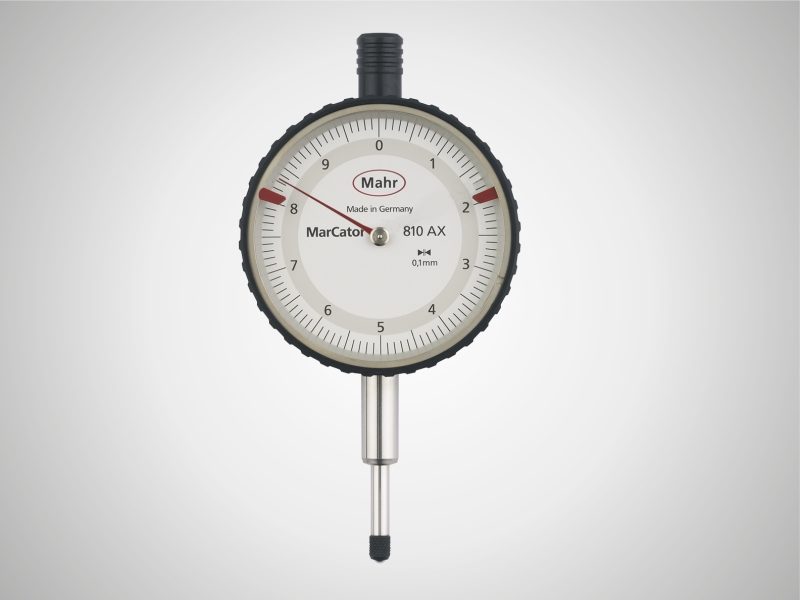

MARCATOR 810 AX PRECISION DIAL INDICATOR
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
 |
Technical data
| Order no. | Product type | Measuring span in mm | Graduation value mm | Type of dial face | Range per rev. in mm | Error limit measuring range µm | Error limit 1 revolution µm | Error limit 1/2 revolution µm | Error limit 1/10 revolution µm | Hysteresis fu (µm) | Repeatability fw (µm) | Standard | Overtravel mm | Scale diameter | Dial color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4331000 |
810 AX
|
10 mm
|
0.1 mm
|
0 – 10
|
10 mm
|
50 µm
|
50 µm
|
30 µm
|
15 µm
|
15 µm
|
15 µm
|
Factory standard
|
0.5 mm
|
50 mm
|
white
|
