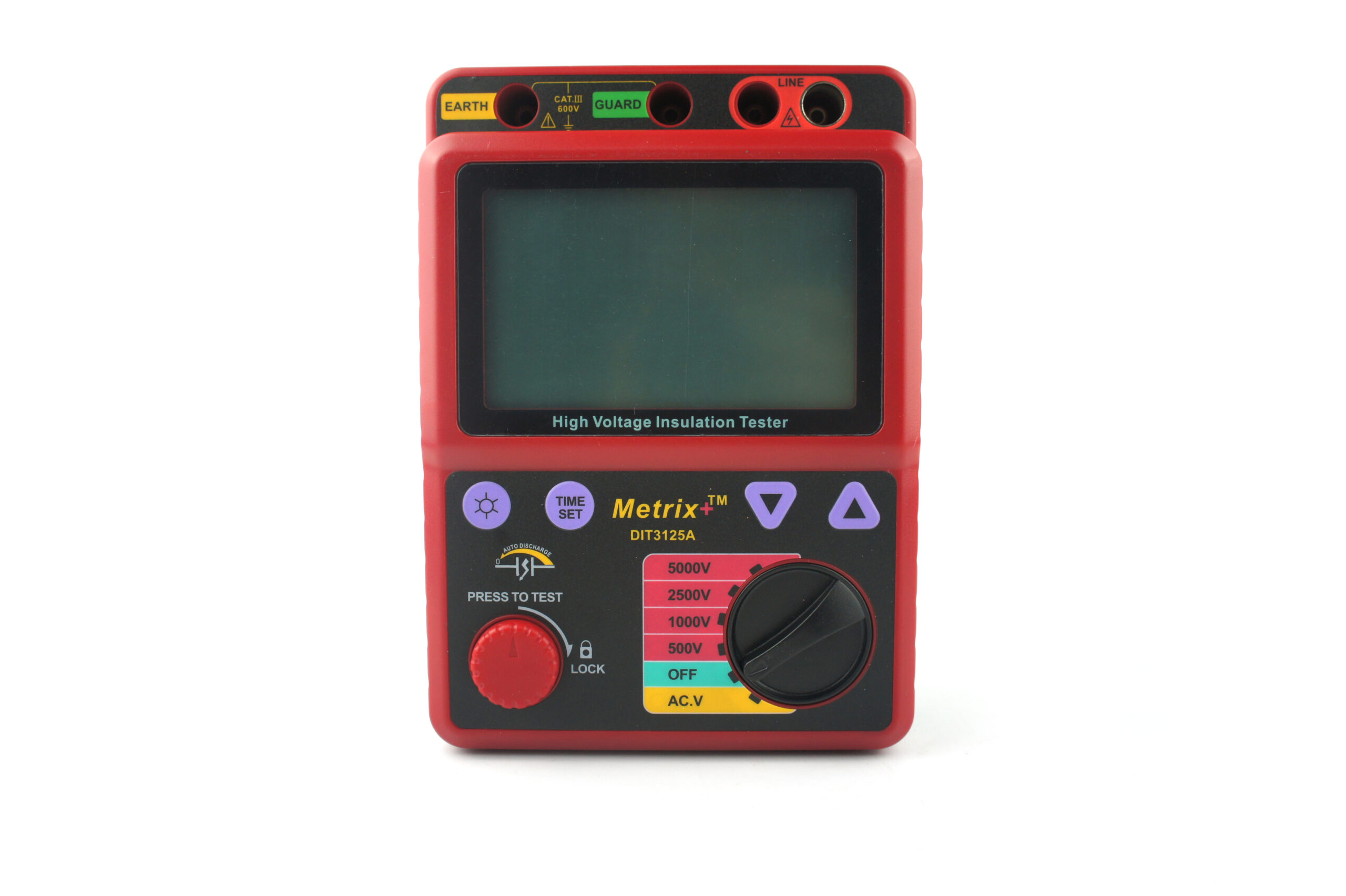

METRIX+ DIT 3125A ECO

Product Overview

The Metrix+ DIT 3125A Eco is a professional 5kV digital insulation tester designed for high-voltage testing applications. Engineered for accurate insulation resistance measurement and voltage testing, this instrument is powered by either an external DC adapter or standard batteries, making it suitable for field and bench operations.

Key Features & Capabilities

Backlit LCD display
Timer measurement function
PI (Polarization Index) measurement
DC adapter or batteries for power
Auto discharge
Live wire warning system with audio sound
Overload protection
Low voltage indication
Auto power off

Technical Specifications

Parameter	Specification
Model	Metrix+ DIT 3125A Eco
Display	999 count (1000 count only at 1TΩ)
Rated voltage	500V / 1000V / 2500V / 5000V
Insulation resistance testing range	0.0MΩ ~ 1000GΩ
Accuracy	0~99.9GΩ: ±2%rdg +3dgt; >100GΩ: +20% +3dgt
Short circuit current	1.3mA approx
Voltage testing range	DC/AC 30 ~ 600V (50/60Hz)
Voltage testing accuracy	±2%rdg +3dgt
Voltage Resolution	1.0V
Sampling rate	0.5 ~ 10 times/sec
Max. short circuit current	1.3mA
Operating conditions	0 ~ 40°C, <85%RH
Storage conditions	-20 ~ 60°C, <90%RH
Power	External power supply: DC adapter 12V/1A; or 8x1.5V LR14 battery
Size & weight	153 x 213 x 95mm, 1027g
Standard accessories	Main unit, test wires, alligator clips, carry case, user manual, DC adapter, batteries, gift box
