METRIX+ MICROCOAT F

▪Precision measurement of thinner coatings and on smaller workpieces
▪Backlit display for better readability
▪Zero-point calibration and multi-point calibration
▪Single and continuous mode, helpful for curved and tiny objects
▪Selectable um/mil measuring units
▪Auto power off

DOWNLOAD CATALOG

f in

Click to Expand

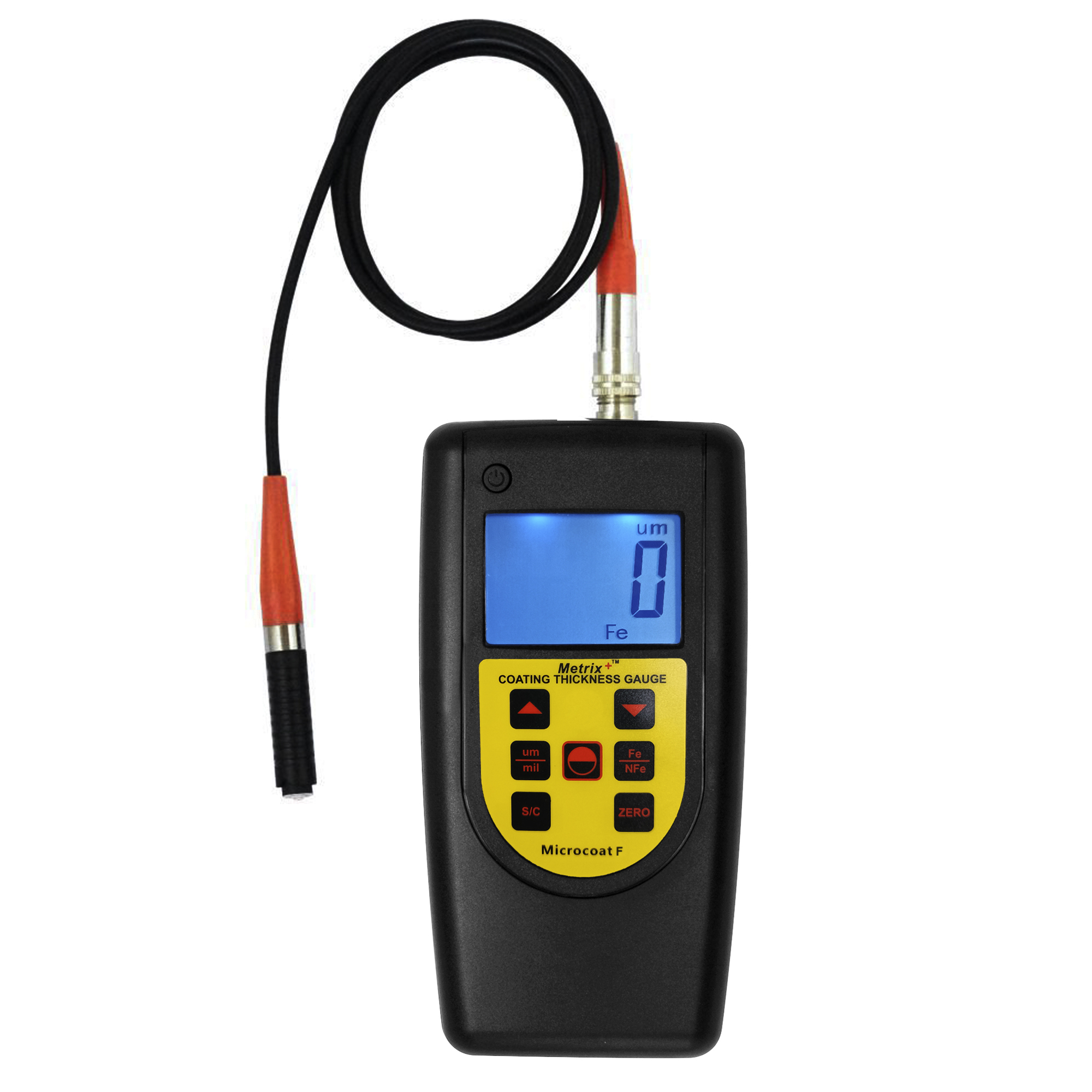

METRIX+ MICROCOAT F

Product Overview

The METRIX+ Microcoat F is a precision coating thickness gauge featuring a unique external probe that utilizes the principle of electromagnetic induction. Specifically designed for measuring thinner coatings on small workpieces, it non-destructively measures non-magnetic coatings on magnetic (ferrous) substrates. The instrument meets ISO 2178, ISO 2361, DIN, ASTM, and BS standards, making it suitable for both laboratory and harsh field conditions.

Key Features & Capabilities

Precision measurement of thinner coatings and smaller workpieces
Zero-point calibration and multi-point calibration support
Single and continuous measuring modes, ideal for curved and tiny objects
Metric and Imperial measuring units ($\mu m$ and mil)
4 digits backlit LCD display for enhanced readability
Auto power-off function

Applications & Industries

Non-destructively measuring thickness of thin coatings on ferrous substrates
Measuring galvanizing layers, lacquer layers, porcelain enamel, phosphide layers, and copper tiles
Surface protection and coatings industry, engineering fields, manufacturing industries, metal processing industries, chemical industries, and commodity inspection areas

Technical Specifications

Parameter	Specification
Model	Metrix+ Microcoat F
International Standards	ISO 2178, ISO 2361, DIN, ASTM, BS
Measuring Principle	Magnetic induction (Ferrous)
Display	4 digits backlit LCD
Measuring Range	0 – 200 $\mu m$ (0 – 8 mils)
Accuracy	$\pm 1-3\%n$ or $\pm 2.5\mu m$
Resolution	0.1 $\mu m$ (0 ~ 99.9 $\mu m$); 1 $\mu m$ (over 100 $\mu m$)
Minimum Curvature Radius	Convex: 2 mm; Concave: 4 mm
Minimum Thickness of Substrate	0.1 mm
Power Supply	4 x 1.5V AAA batteries
Operation Environment	Temperature: 0 ~ 40°C; Humidity: 10 ~ 90% RH
Size & Weight	140 mm × 72 mm × 34 mm; 215 g (not including batteries)
Standard Accessories	Coating Thickness Gauge, F probe, '0' calibration ferrous block, standard foils, batteries, technical manual, hard carry case
Optional Accessories	PC interface (cable and software)
