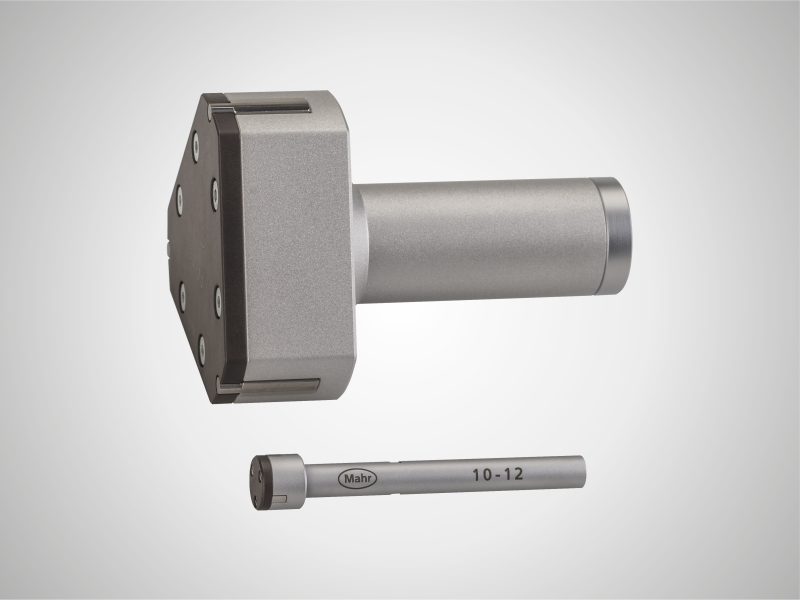

MICROMAR 44 AK MEASURING HEAD

  • Self-centering measuring head consists of 3 laterally positioned anvils, each are offset at intervals of 120°
  • Anvils from 12 mm are carbide tipped
  • From 12 mm the anvils can be used to measure the bottom of a bore
  • From 40 mm all measuring heads are made from aluminium to reduce weight

Technical data

Order no. Measuring range mm Measuring range inches
4190330
6 – 8
.25 – .3125″
4190331
8 – 10
.3125 – .4″
4190332
10 – 12
.4 – .4725″
4190333
12 – 16
.4725 – .625″
4190334
16 – 20
.625 – .775″
4190335
20 – 25
.775 – 1″
4190336
25 – 30
1 – 1.2″
4190337
30 – 40
1.2 – 1.6″
4190339
40 – 50
1.6 – 2″
4190340
50 – 60
2 – 2.35″
4190341
60 – 70
2.35 – 2.75″
4190042
70 – 85
2.75 – 3.35″
4190043
85 – 100
3.35 – 4″
4190044
100 – 125
4 – 4.9″
4190045
125 – 150
4.9 – 5.9″
4190046
150 – 175
5.9 – 6.9″
4190047
175 – 200
6.9 – 7.9″

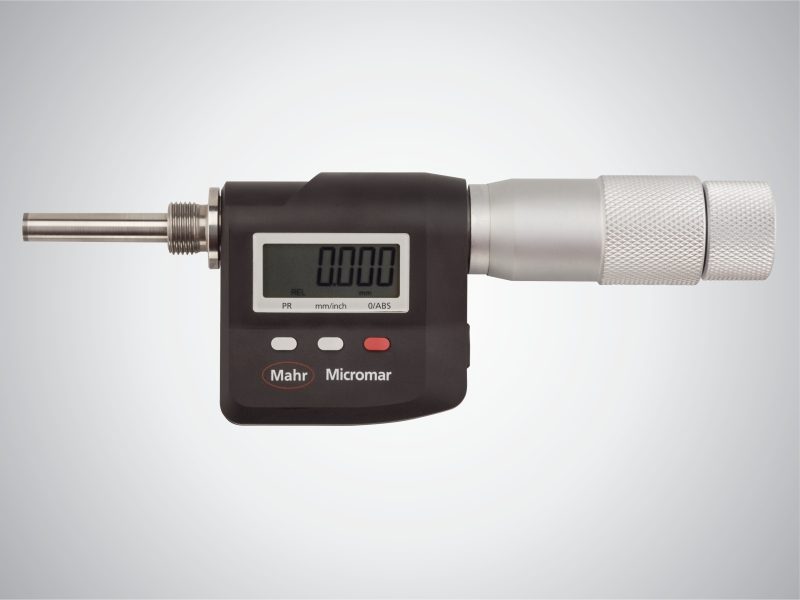

MICROMAR 44 EWG BASIC UNIT

Threaded connection for changing the measuring head

  • Digimatic
  • Opto RS232C
  • USB
  • Battery life approx. 2 years
  • IP 52
  • instruction manual
  • battery
  • case



Technical data

Order no. Measuring range mm Measuring range inches Resolution mm/inch
4190106
6 – 20
.25 – .775″
0.001 / .00005″
4190107
20 – 100
.775 – 4.0″
0.001 / .00005″
4190108
100 – 200
4.0 – 7.9″
0.001 / .00005″

Functions

  • RESET (set display to zero)
  • ABS (display can be set to zero without losing reference to preset)
  • PRESET (for entering a numerical value)
  • mm/inch
  • LOCK function (key lock)
  • DATA (data transmission via connection cable)

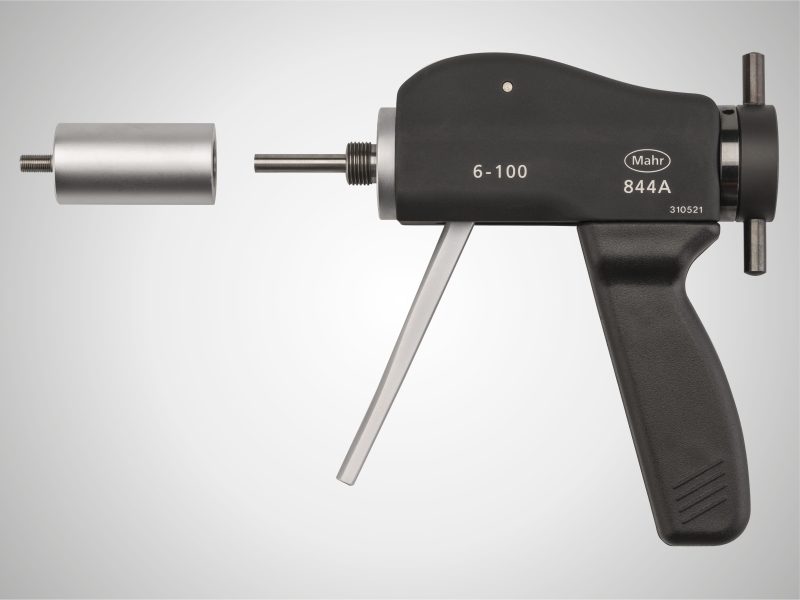

MICROMAR 844 AG BASIC INSTRUMENT MEASURING PISTOL

  • Threaded connection for changing the measuring head
  • Any indicating instrument with an 8 mm mounting shank can be used
  • instruction manual
  • case

Technical data

Order no. Measuring range mm Measuring range inches
4487633
20 – 100
.775 – 4.0″
4487634
100 – 200
4.0 – 7.9″
4487635
6 – 100
.25 – 4.0″
