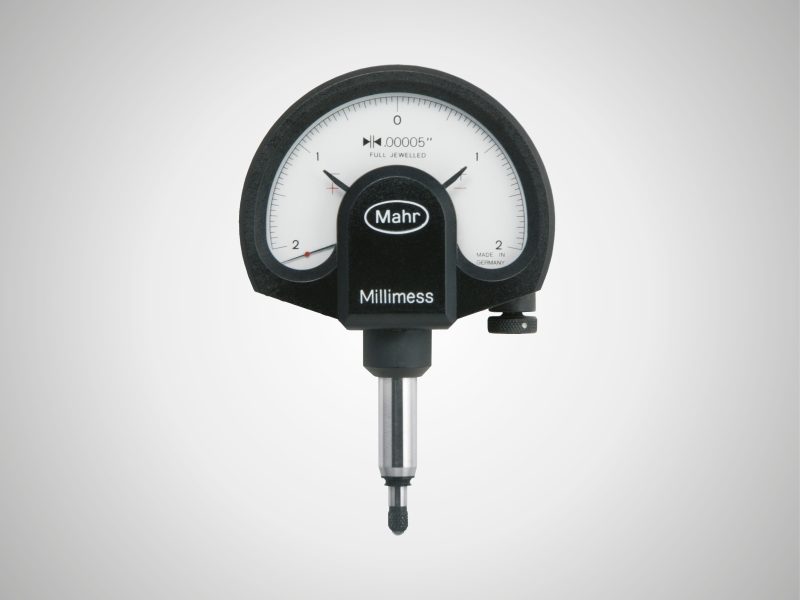

MILLIMESS 1002 Z MECHANICAL DIAL COMPARATOR

Large, high contrast dial face Adjustable tolerance markers Lockable fine adjustment screw Shockproof movement Mounting shank and measuring spindle are both made of hardened stainless steel Resistant to lateral forces (side play) acting on the measuring spindle Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
  • Large, high contrast dial face
  • Adjustable tolerance markers
  • Lockable fine adjustment screw
  • Shockproof movement
  • Mounting shank and measuring spindle are both made of hardened stainless steel
  • Resistant to lateral forces (side play) acting on the measuring spindle
  • Maximum sensitivity and accuracy are ensured by the jeweled movement in conjunction with the precision gears and pinions
  • Box type protective housing
  • Constant measuring force
  • Measuring spindle can be retracted with either a screw in cable release or with a lifting knob

Z mechanical dial comparator

Technical data

Order no. Product type Measuring range inch Graduation value inch Type of dial face Error limit Ge in inches (text) Error limit Gges in inches (text) Error limit Gt in inches (text) Hysteresis fu (inch) Repeatability fw (inch) Standard Measuring force Scale diameter Dial color IP protection category
4335900
1002 Z
± .0010″
0 inch
.001″-0-.001″
.00002″
.00003″
.000014″
0 inch
0 inch
Factory standard
1 N
50 mm
white
4335905
1002 ZT
± .0010″
0 inch
.001″-0-.001″
.00002″
.00003″
.000014″
0 inch
0 inch
Factory standard
1 N
50 mm
white
IP 54
4334900
1003 Z
± .0020″
0 inch
.002″-0-.002″
.00005″
.00006″
.000035″
0 inch
0 inch
Factory standard
1 N
50 mm
white
4334905
1003 ZT
± .0020″
0 inch
.002″-0-.002″
.00005″
.00006″
.000035″
0 inch
0 inch
Factory standard
1 N
50 mm
white
IP 54
4333900
1004 Z
± .0050″
0 inch
.005″-0-.005″
.0001″
.00012″
.00005″
0 inch
0 inch
Factory standard
1 N
50 mm
white
4333905
1004 ZT
± .0050″
0 inch
.005″-0-.005″
.0001″
.00012″
.00005″
0 inch
0 inch
Factory standard
1 N
50 mm
white
IP 54
4332900
1010 Z
± .0100″
0.001 inch
.01″-0-.01″
.00035″
.0004″
.00025″
0 inch
0 inch
Factory standard
1 N
50 mm
white
4332905
1010 ZT
± .0100″
0.001 inch
.01″-0-.01″
.00035″
.0004″
.00025″
0 inch
0 inch
Factory standard
1 N
50 mm
white
IP 54
