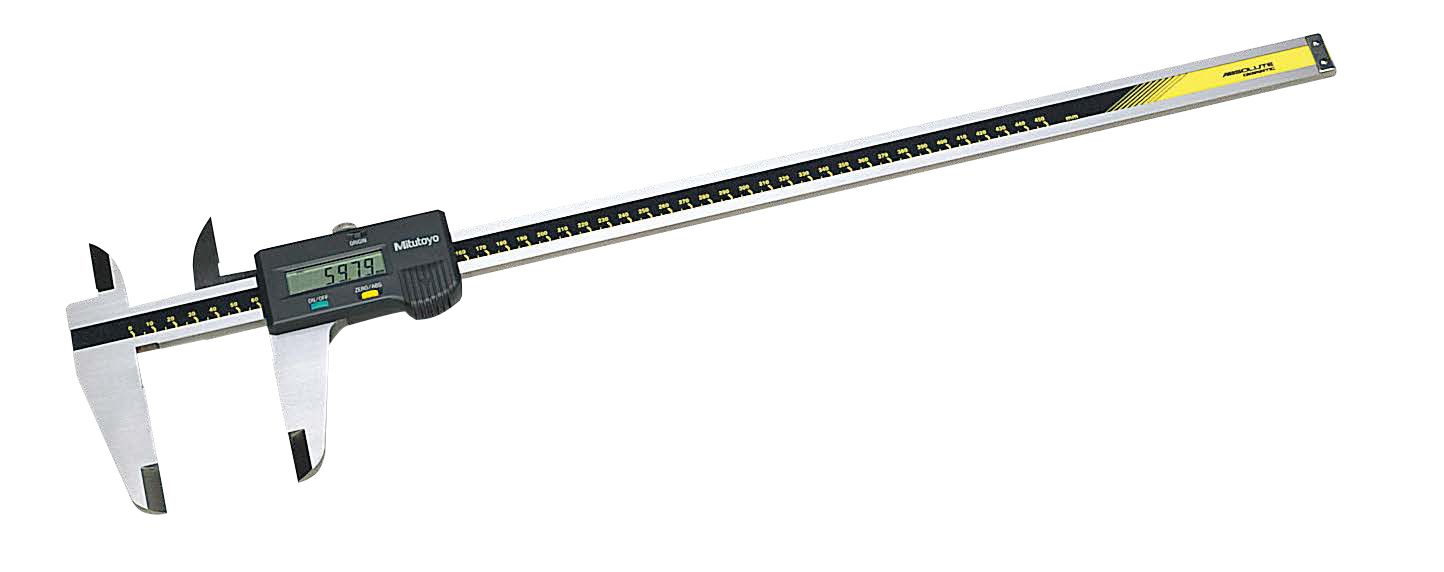

- Long Digital caliper incorporating an ABSOLUTE scale and available with a measuring range from 450mm to 1000mm.
- Allows step measurement
- Allows integration into statistical process control and measurement systems for models with measurement data output connector. Refer to page A-3.
- For the details of the Absolute scale and its function, refer to page D-8.
SPECIFICATIONS
Metric
| Order No. | Range | Depth bar | Fine adjustment | Remarks |
|---|---|---|---|---|
| 500-500-10 | 0 – 450mm |
— |
— |
— |
| 500-501-10 | 0 – 600mm | |||
| 500-502-10 | 0 – 1000mm |
* without SPC data output
Inch/Metric
| Order No. | Range | Depth bar | Fine adjustment | Remarks |
|---|---|---|---|---|
| 500-505-10 | 0 – 18″ |
— |
— |
— |
| 500-506-10 | 0 – 24″ | |||
| 500-507-10 | 0 – 40″ |
* without SPC data output
DIMENSIONS
| Range | A | B | C | D | H | L | Outside jaw width |
|---|---|---|---|---|---|---|---|
| 0-450mm | 38 | 47 | 35.9 | 90 | 25 | 630 | 6 |
| 0-600mm | 780 | ||||||
| 0-1000mm | 50 | 60 | 49.8 | 130 | 32 | 1240 | 8 |
Optional accessories
Dedicated for the models equipped with a digimatic output function. For details, refer to page D-39.
959143: Data hold unit
Connecting cables for IT/DP/MUX*
959149: SPC cable with data button (1m)
959150: SPC cable with data button (2m)
USB Input Tool Direct
06ADV380C: SPC cable for USB-ITN-C (2m)
Connecting cables for U-WAVE-T
02AZD790C: SPC cable for U-WAVE with data button (160mm)
02AZE140C: SPC cable for footswitch
Technical Data
Accuracy: ±0.05mm (£600mm), ±0.07mm (£1000mm) (excluding quantizing error)
Resolution: 0.01mm or .0005″/0.01mm Repeatability: 0.01mm
Display: LCD
Scale type: ABSOLUTE electrostatic capacity linear encoder Max. response speed: Unlimited
Battery: SR44 (1 pc), 938882,
for initial operational checks (standard accessory)
Battery life: Approx. 3.5 years under normal use
Max. response speed: Unlimited
