NOGA HEAVY DUTY COUNTERSINK C BLADES

  • Heavy Duty 3.2mm Swivel blades.
  • For fast and easy removal of burrs from Straight edge, Curved edge, Holes, Cross holes and Deep holes.
  • A comprehensive program to cover all your heavy duty deburring needs.
  • Choose the right blade for your workpiece material and dimensions.Some blades are available for right hand or left hand operation, and some are for both.
  • Some blades are made of M35 Super H.S.S. or Tungsten Carbide and certain blades can be obtained Tin-coated for longer tool life.

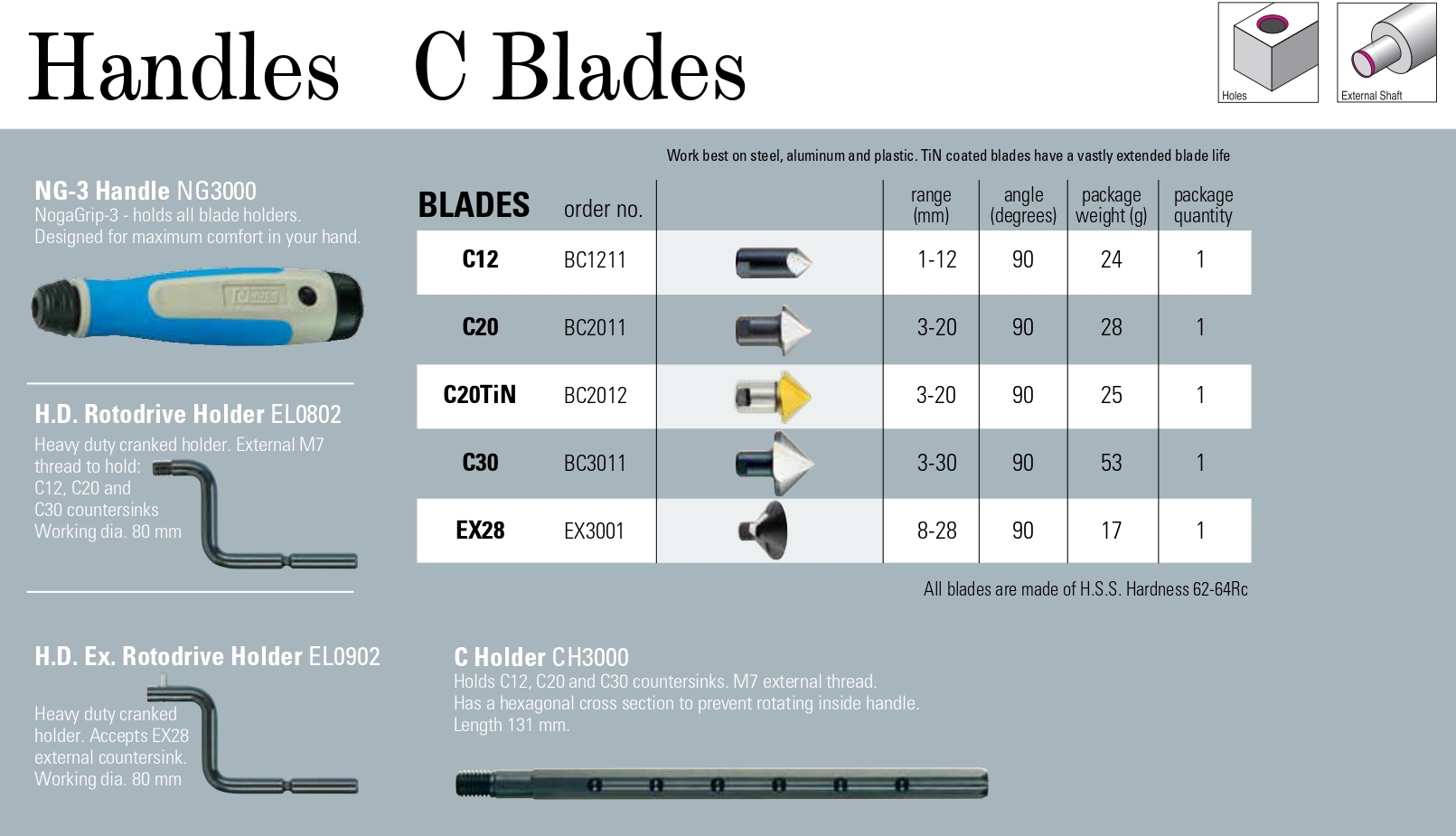

Blades Order No. Range (mm) Angle (Degree) Package Weight (g) Pack Quantity
C12 BC1211 1-22 90 24 1
C20 BC2011 3-20 90 28 1
C20 TiN BC2012 3-20 90 25 1
C30 Bc3011 3-30 90 53 1
EX28 EX3001 8-28 90 17 1

Work best on steel, aluminum and plastic, TiN coated blades have a vastly extended lade life.



BLADES

C12 – BC1211

C20 – BC2011

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 3 – 20 mm
  • Weight: 28 gr
  • Pack quantity: 1 pcs

C20 TiN – BC2012

C20 TiN Countersink.
For longer life and harder materials.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 3 – 20 mm
  • Weight: 28 gr
  • Pack quantity: 1 pcs

C30 – BC3011

C30 Countersink.

  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 3 – 30 mm
  • Weight: 58 gr
  • Pack quantity: 1 pcs

EX28 – EX3001

  • 28mm external crancked RotoDrive Countersink
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 8 – 28 mm
  • Weight: 40 gr
  • Pack quantity: 1 pcs

EX34 – EX3401

  • 34mm Internal & External Countersink
  • Blade Material: H.S.S
  • Hardness: 62-64 Rc
  • Angle: 90 Deg
  • Range: 8 – 34 mm
  • Weight: 42 gr
  • Pack quantity: 1 pcs
