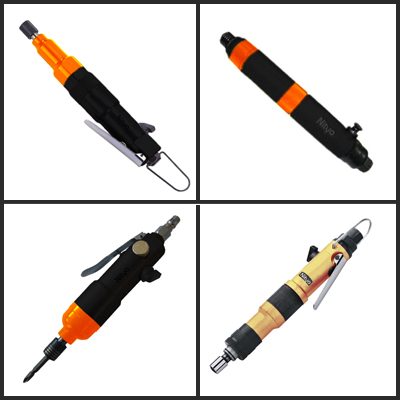

PNEUMATIC SCREWDRIVER

Name: PNEUMATIC SCREWDRIVER
Brand: NITYO TOOLS
SKU: NI-6617 Specifications: Bolt Capacity: 5 mm Free Speed:800 r.p.m Max Torque: 16 Nm Length: 225 mm Net Weight: 1.24 Kg Air Inlet: 1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)

Code:NI-6617 Specifications: Bolt Capacity: 5 mm Free Speed:800 r.p.m Max Torque: 16 Nm Length: 225 mm Net Weight: 1.24 Kg Air Inlet: 1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6616 Specifications: Free Speed: 1100 r.p.m Max Torque: 20Nm Bolt Capacity: 5 mm Net Weight: 1.24Kg Length: 220 mm Air Inlet: 1/4″ Hose Size:3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6615 Specifications: Bolt Capacity: 6 mm Free Speed:1800r.p.m Max Torque: 5-15 Nm Length: 270 mm Net Weight: 0.95Kg Air Inlet: 1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6618 Specifications: Bolt Capacity: 6 mm Free Speed: 1800r.p.m Max Torque:15 Nm Length: 233mm Net Weight: 1.35Kg Air Inlet:1/4″ Hose Size:3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6614 Specifications: Bolt Capacity: 5 mm Free Speed: 11000r.p.m Max Torque: 22 Nm Length: 185mm Net Weight: 1.75Kg Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6614H Specifications: Chuck Size: 1/4″ Free Speed: 1800 r.p.m Max Torque: 8 Nm Net Weight: 0.8Kg Length: 245mm Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6611H Specifications: Chuck Size: 1/4″ Free Speed: 1000 r.p.m Max Torque: 5 Nm Net Weight: 0.7Kg Length: 150mm Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6613 Specifications: Chuck Size: 1/4″ Free Speed: 11000 r.p.m Max Torque: 21 Nm Net Weight: 0.90Kg Length: 210 mm Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6612 Specifications: Bolt Capacity: 5 mm Free Speed: 11000r.p.m Max Torque: 22 Nm Length: 185mm Net Weight: 1.75Kg Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)NI-6611 Specifications: Chuck Size: 1/4″ Free Speed: 2000 r.p.m Max Torque:3 Nm Length: 215 mm Net Weight: 0.6Kg Air Inlet:1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2)... ▾ (+99)

Code:

NI-6617 Specifications: Bolt Capacity: 5 mm Free Speed:800 r.p.m Max Torque: 16 Nm Length: 225 mm Net Weight: 1.24 Kg Air Inlet: 1/4″ Hose Size: 3/8″ Air Pressure: 90 psi (6.3 kg/cm2) NI-6616 Specifications: Free Speed: 1100 r.p.m Max Torque: 20Nm Bolt Capacity: 5 mm Net Weight: 1.24Kg Length: 220 mm Air Inlet: 1/4″

f in

Click to Expand

Product Overview

The Nityo Tools Pneumatic Screwdriver series offers a comprehensive range of high-performance fastening solutions designed for industrial assembly and maintenance applications. This series includes various models engineered for specific torque requirements, bolt capacities, and operational speeds, ensuring precision and reliability in professional environments. All models operate at a standard air pressure of 90 psi (6.3 kg/cm²).

Key Features & Capabilities

Diverse Performance Range: Models available with free speeds ranging from 800 r.p.m. to 11,000 r.p.m.
Torque Versatility: Engineered to handle torque requirements from 3 Nm up to 22 Nm.
Standardized Connectivity: All units feature a 1/4" air inlet and are compatible with 3/8" hose sizes for seamless integration into existing pneumatic systems.
Ergonomic Design: Lightweight construction, with net weights ranging from 0.6 kg to 1.75 kg, designed for operator comfort and efficiency.

Technical Specifications

Model	Bolt Capacity / Chuck Size	Free Speed (r.p.m)	Max Torque (Nm)	Length (mm)	Net Weight (kg)
NI-6617	5 mm	800	16	225	1.24
NI-6616	5 mm	1100	20	220	1.24
NI-6615	6 mm	1800	5-15	270	0.95
NI-6618	6 mm	1800	15	233	1.35
NI-6614	5 mm	11000	22	185	1.75
NI-6614H	1/4" Chuck	1800	8	245	0.80
NI-6611H	1/4" Chuck	1000	5	150	0.70
NI-6613	1/4" Chuck	11000	21	210	0.90
NI-6612	5 mm	11000	22	185	1.75
NI-6611	1/4" Chuck	2000	3	215	0.60
