NOGA REVERSIBLE COUNTERSINKS

Application : Pipe Cross Holes
  • All blades supplied with replacemnet screw
  • All blades are of H.S.S. Hardness 62-64Rc

REVERSIBLE COUNTERSINK DEBURRING TOOLS

RC1000

ORDER NO RANGE (MM) PACKAGE WEIGHT  (G)
RC1000 3.5 – 5 4
RC2000 5 – 10 5
RC2200 10 – 22 6

BLADES

BLADES ORDER NO ANGLE (DEGREE) RANGE (MM) PACKAGE WEIGHT  (G) PACKAGE QUANTITY
R1 BR1001 90 3.5 – 5 4 1
R2 BR2001 90 5 – 10 5 1
R3 BR3001 90 10 – 22 6 1

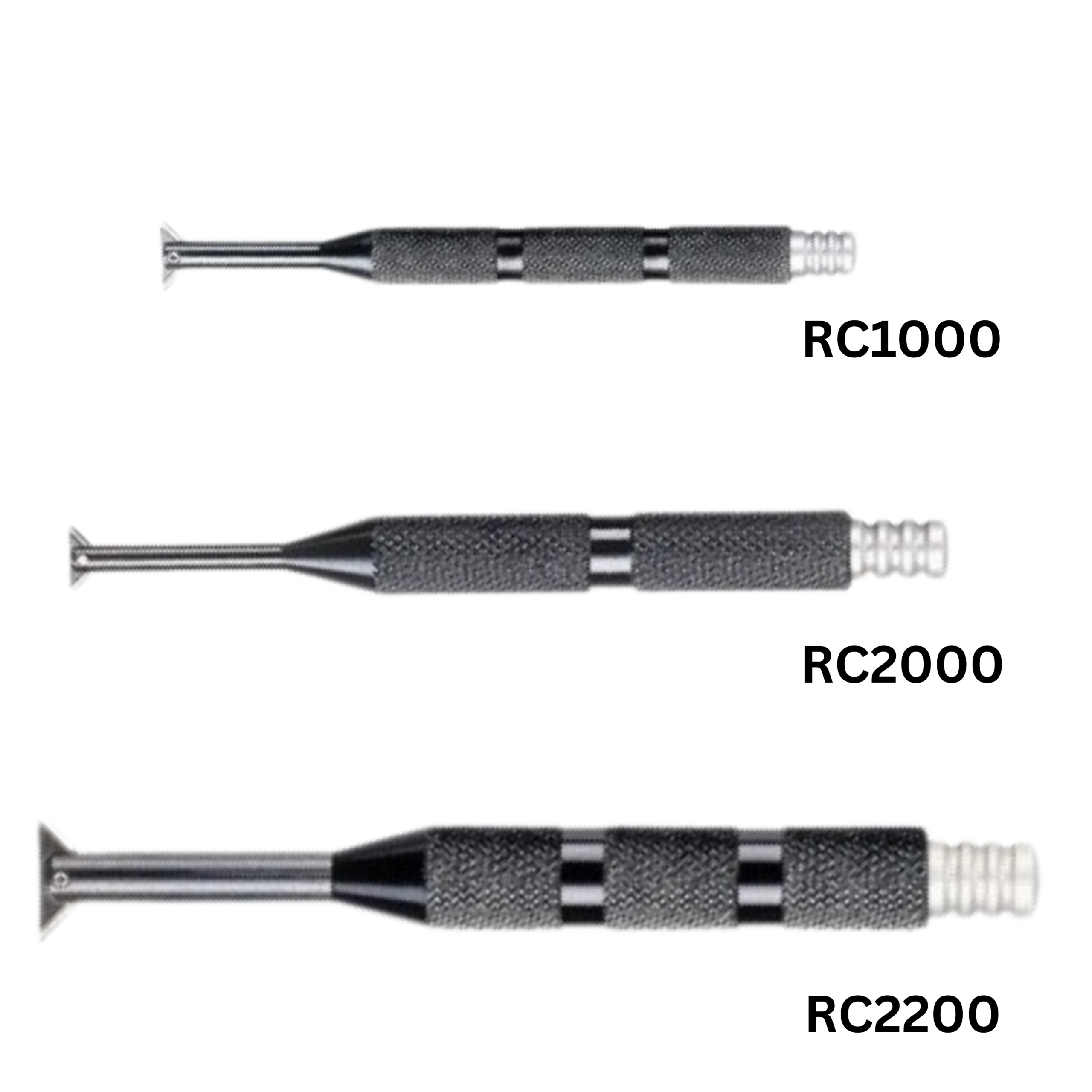

REVERSIBLE COUNTERSINK DEBURRING TOOLS

MINI REVERSIBLE – RC1000

  • Very fine tool for deburring both back and front side of holes.
  • Range 3-5.5mm.
  • Includes: R1 (BR1001)

MEDIUM REVERSIBLE – RC2000

  • For deburring both back and front side of holes.
  • Range 5-10mm.
  • Includes: R2 (BR2001)

LARGE REVERSIBLE – RC2200

  • For deburring both back and front side of holes.
  • Range 10-22mm.
  • Includes: R3 (BR3001)

BLADES

R1 – BR1001

  • Range 3-5.5mm.
  • Countersinking angle 90deg.
  • Weight 5gr.
  • Pack quantity 1 piece.
  • Made of H.S.S.. Hardness 62-64Rc.

R2 – BR2001

  • Range 5-10mm.
  • Countersinking angle 90deg.
  • Weight 7gr.
  • Pack quantity 1 piece.
  • Made of H.S.S.. Hardness 62-64Rc.

R3 – BR3001

  • Range 10-22mm.
  • Countersinking angle 90deg.
  • Weight 8gr.
  • Pack quantity 1 piece.
  • Made of H.S.S.. Hardness 62-64Rc.
