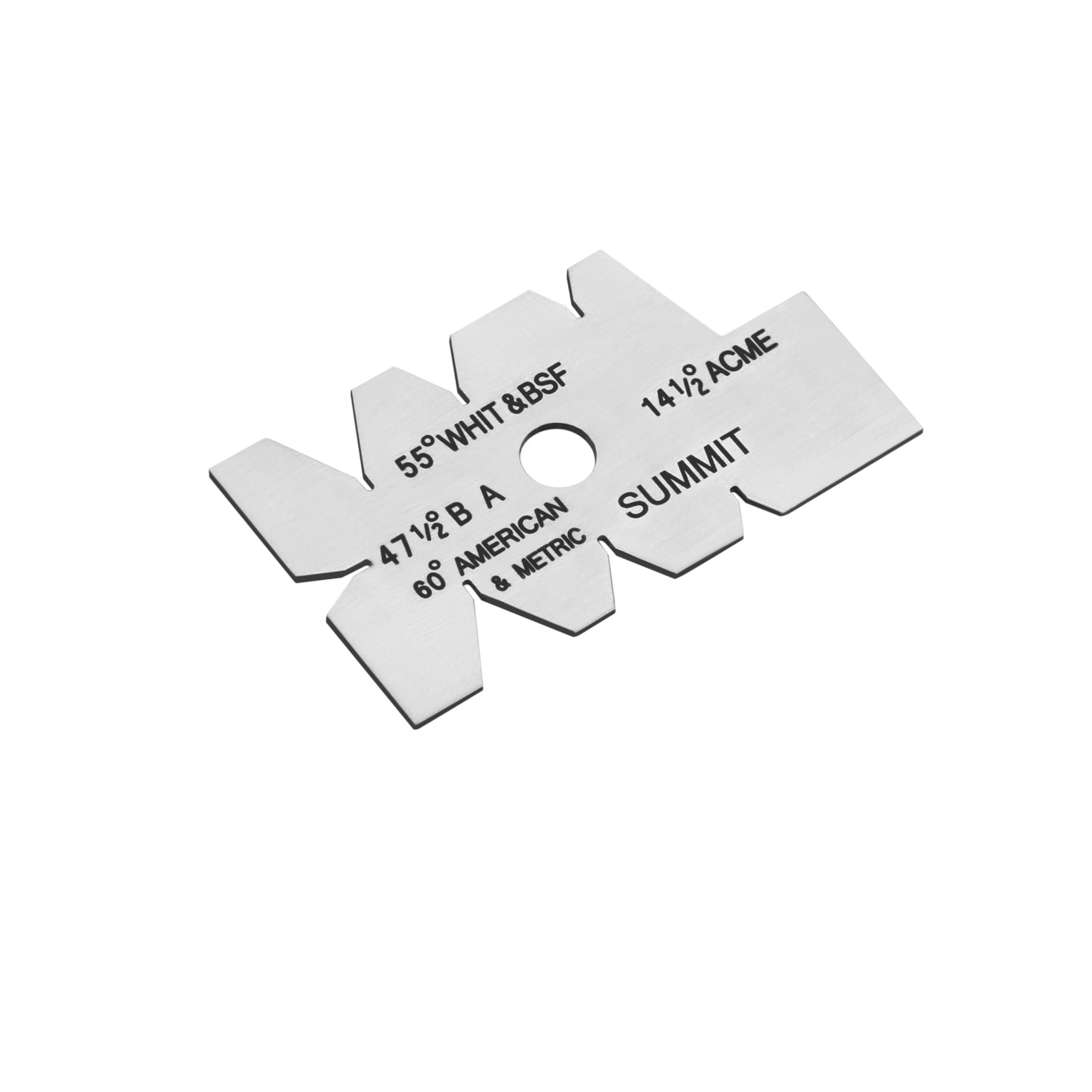

The gauge features accurately machined profiles corresponding to standard thread forms, allowing quick verification of thread angles and alignment. Manufactured from high-quality hardened steel or stainless steel, it provides excellent durability, wear resistance, and long service life. Its compact design makes it easy to handle and ideal for workshop use.

Where to Use

• Machining: Setting and checking thread cutting tools
• Lathe Operations: Ensuring correct tool angle for threading
• Tool Rooms: Grinding and inspection of threading tools
• Maintenance Work: Verifying thread profiles
• Engineering Workshops: Precision setup and measurement tasks

Key Features

• Ensures correct thread angle and profile
• Precisely machined for accurate checking
• Durable and wear-resistant construction
• Compact and easy to use
• Suitable for threading tool setup

Applications

Used for checking, setting, and verifying thread angles during screw cutting and threading operations in machining and tool room applications.
