CP KEY WAY SLOT DEBURRER

Code:

▪KWS - SD (34074)
▪KW - 9 (27090)
▪KW - 16 (27160)

Click to Expand

CP KEY WAY SLOT DEBURRER

Product Overview

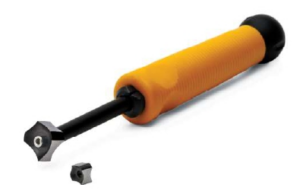

The CP Key Way Slot Deburrerr (Model: KWS-SD, SKU: 34074) is a precision deburring tool designed specifically for keyways, slots, and edge finishing. Manufactured by CP Gratex, this tool features a poly acetal body T-SD handle with a telescopic holder configured to mount two key-way deburring blades (KW-9 and KW-16) at opposite ends. The set includes both blades as spare parts/components.

Key Features & Capabilities

Dual-Blade Configuration: Telescopic holder designed to mount both KW-9 and KW-16 blades from two ends.
Multi-Edge Cutting Design: Blades feature 4 cutting edges on either side: 2 for normal depth of slot/key-way and 2 for shallow depth.
Coverage Dimensions:
KW-9 covers widths up to 9 mm.
KW-16 covers widths up to 16 mm.
User Adaptability: Suitable for both left and right-hand users.

Technical Specifications

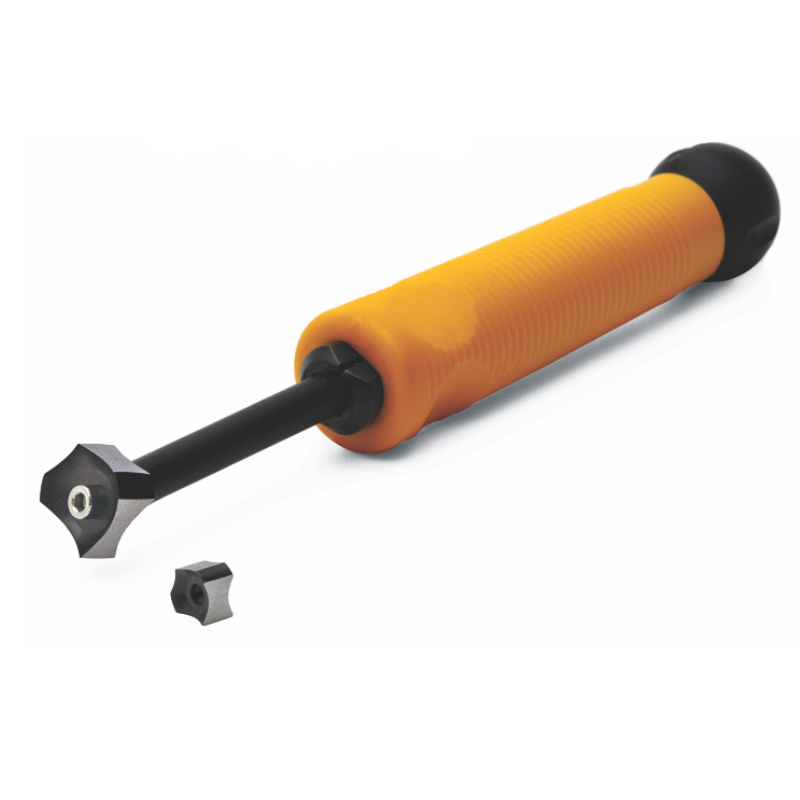

Tool Assembly: KWS-SD (34074)

Parameter	Specification
Material	Handle – Polyacetal; Holder – Steel; Blade – HSS (M2 Grade)
Blade Hardness	62–64 HRC
Dimensions	Length = 177 mm (min) / 235 mm (max), Handle Dia. = 23.7 mm, End Cap Dia. = 24 mm
Packaging	Card Box
Pack Quantity	1
Packing Weight	105 gms

---

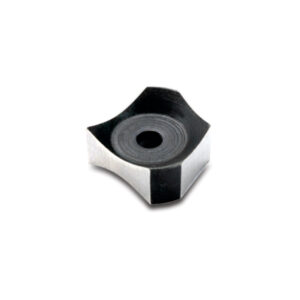

Replacement Blades

#### KW-9 (27090)

Parameter	Specification
Material & Hardness	HSS (M2 Grade); Hardness: 62–64 HRC
Application Width	Covers up to 9 mm width for normal and shallow slot depths
Packaging	Plastic Box
Pack Quantity	1
Packing Weight	11.6 gms

#### KW-16 (27160)

Parameter	Specification
Material & Hardness	HSS (M2 Grade); Hardness: 62–64 HRC
Application Width	Covers up to 16 mm width for normal and shallow slot depths
Packaging	Plastic Box
Pack Quantity	1
Packing Weight	12 gms
