CP Gratex Light Duty Tools with Standard Blades comprise precision hand deburring solutions designed for professional industrial finishing. The series features three distinct models—ET-1 (38030), CG-1 (38114), and DT-5(2)-SD (34522)—engineered for light-duty deburring applications with replaceable HSS (M2 Grade) blades.

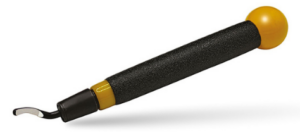

- ET-1 (38030):
- Metallic handle with soft grip and ball end cap.
- Holds $\varnothing 2.6\text{ mm}$ P-1 blade.
- Laser marked for easy identification.
- Designed for right-hand users only.

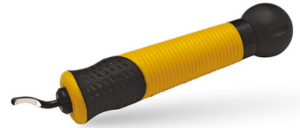

- CG-1 (38114):
- Poly acetal body handle with soft grip and ball end cap.
- Holds $\varnothing 2.6\text{ mm}$ P-1 blade.
- Laser marked for easy identification.
- Designed for right-hand users only.

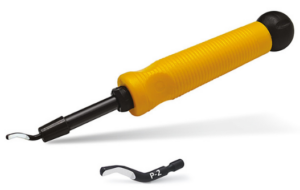

- DT-5(2)-SD (34522):
- Poly acetal body T-SD (Yellow/Black) handle with telescopic holder DT(P) and ball end cap.
- Holds $\varnothing 2.6\text{ mm}$ P-1 and P-2 blades.
- Collet action ensures firm locking of plain surface holders.
- Suitable for both right and left-hand users.
- Blade Performance:
- P-1 blade works best on metals forming spiral chips such as Steel, Aluminum, and Copper.
- P-2 blade is suitable for metals forming brittle burr such as Cast Iron and Brass.
- Both blades can also be used on other metals ($\text{hardness} < 35\text{ HRC}$) and plastics.
Model Specifications & Dimensions
