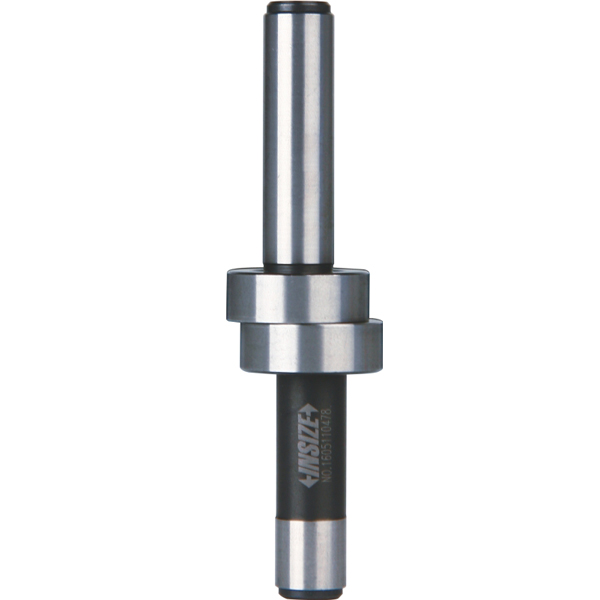

EDGE FINDER CODE – 6562

  • Hardened shank and contact point
6562 6562_01 6562_02



Code Shank(A)
Contact point(B)

Contact point(C)

Accuracy
6562 -3 Ø10mm Ø10mm 5µm
6562-4 Ø10mm Ø10mm Ø4mm 5µm

Check the PDF



EDGE FINDER CODE – 6567

  • Hardened shank and contact point
6567 6567_01 6567_02



Code Shank(A)
Contact point(B)

Accuracy
6567-1 Ø10mm Ø6mm 8µm

Check the PDF
