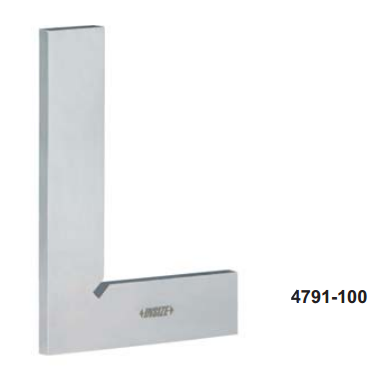

FLAT EDGE SQUARE CODE – 4791



    Squareness
Code Size (LxW) Inside(α) Outside(β) C D H(mm)
4791-50 50x40mm 6µm 6µm 13 13 4
4791-75 75x50mm 6µm 7µm 15 15 4
4791-100 100x70mm 7µm 7µm 20 20 5
4791-150 150x100mm 7µm 3.5µm 30 30 6
4791-200 200x130mm 8µm 9µm 30 30 7
4791-250 250x165mm 9µm 10µm 35 35 7
4791-300 300x200mm 10µm 11µm 40 40 8
