FOOD TESTERS

Name: FOOD TESTERS
Brand: Imada
SKU: DTXS-15

Code:

These automated food testers are designed for clean, smooth trouble-free operation. Food Rheology food testers automatically test firmness, elasticity or viscosity using a load cell combined with programmable movement control. The easy-to-use program dial and menu screens control probe positioning and speed. Select from three movement patterns. The USB port streams 1,000 force data/second to

f in

Click to Expand

FOOD TESTERS

Product Overview

These automated food testers are designed for clean, smooth trouble-free operation. The Imada food tester product line covers automated cap torque testers (Series DTXS and MTG) and wine cork pull testers with digital force gauges (WCP-1 and WCP-2). These instruments provide precise measurement and data logging for industrial testing applications.

Key Features & Capabilities

DTXS Cap Torque Food Testers:
Test cap loosening (CCW) and tightening (CW) torque.
Heavy-duty metal construction.
Selectable real time and peak modes.
USB (virtual COM port), RS-232, Digimatic, and analog outputs.
Selectable lbf-in, kgf-cm, and N-cm units.
1,000 data memory.
Programmable high/low setpoints with color-coded LED indicators and output signal.
Overload and low battery indicators.
200% overload capacity.
Clamps diameters from 20~160mm.
Optional small tables clamp diameters from 7mm~50mm.
Four standard 1-inch pegs.

MTG Motorized Cap Torque Food Testers:
Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing.
1,000 data memory for computer download.
Selectable lbf-in, kgf-cm, and N-cm units.
USB, RS-232C, Digimatic, and analog outputs.
Both CW and CCW operation.
Overload capacity of 150% of F.S. with alarm at 110% F.S.
Real time and peak mode (selectable).
Sample container diameters from 8"~7"; cap diameters 8"~3.5"; container height 3.2"~9.4".
Rotating speed 3~90° per second.
Sampling speed 1,000 per second.
Heavy-duty all-metal construction for exceptional durability.

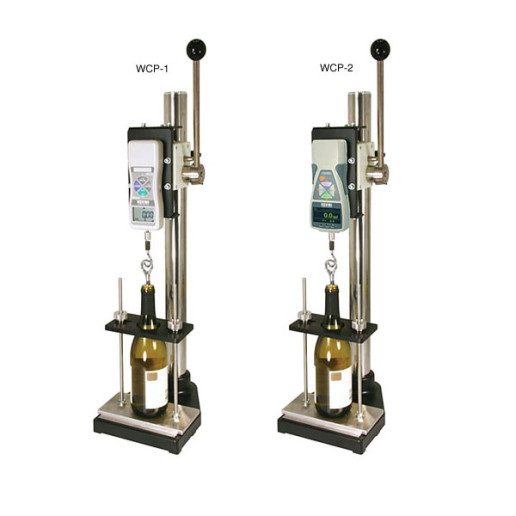

Wine Cork Pull Tester with Digital Force Gauge (WCP-1 and WCP-2):
Heavy-duty metal construction.
Maximum load: 110 lbf (50 kgf).
Stroke: 2.3" (60mm) per 170°.
Selectable lbf, kgf, and N units.
RS-232C, Digimatic, and analog outputs.
Overload capacity: 200% F.S.
Overload alarm, display flashes at overload limit.
Runs on internal NI-MH batteries or AC adapter.
Push-button tare function.
WCP-2 Additional Features: EL electro luminescent display is highly visible in dark locations; programmable high/low setpoints with color coded LED indicators; multi-language program menu (English, Spanish, French, Chinese, German, Italian, Korean, Japanese); 1,000 data memory for recall or download.

Technical Specifications

DTXS Ranges

Model	lbf-in	kgf-cm	N-cm
DTXS-15	15.00 (0.01 lbf-in)	20.00 (0.01 kgf-cm)	200.0 (0.1 N-cm)
DTXS-40	40.00 (0.01 lbf-in)	50.00 (0.01 kgf-cm)	500.0 (0.1 N-cm)
DTXS-85	85.0 (0.1 lbf-in)	100.0 (0.1 kgf-cm)	1000 (1 N-cm)

MTG Ranges

Model	lbf-in	kgf-cm	N-cm
MTG-15	15.00 (0.01 lbf-in)	20.00 (0.01 kgf-cm)	200.0 (0.1 N-cm)
MTG-40	40.00 (0.01 lbf-in)	50.00 (0.01 kgf-cm)	500.0 (0.1 N-cm)
MTG-85	85.0 (0.1 lbf-in)	100.0 (0.1 kgf-cm)	1000 (1 N-cm)
