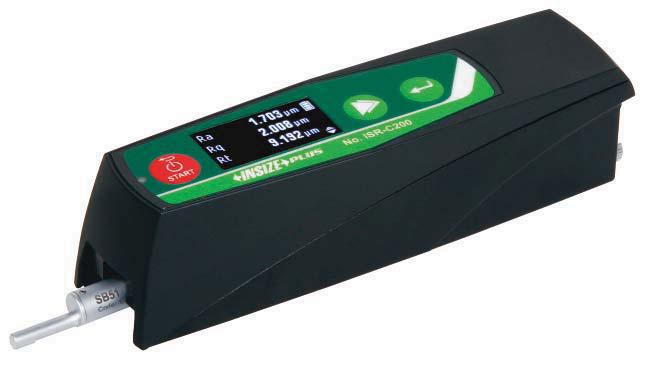

INSIZE ROUGHNESS TESTER COMPACT TYPE (CODE ISR-C200)

Code:

▪The product is light, reliable and durable
▪13 roughness parameters
▪Can be operated by mobile phones (only Android system) or computers
▪Measurement results can be exported in Excel and PDF format
▪Memory of 18000 measurements with only parameters or 30 measurements with graph
▪Automatic power off

Click to Expand

INSIZE ROUGHNESS TESTER COMPACT TYPE (CODE ISR-C200)

Product Overview

The INSIZE Roughness Tester Compact Type (Code ISR-C200) is a light, reliable, and durable instrument designed for surface roughness measurement. Manufactured in Europe, it features an OLED display, bluetooth connectivity, data output capabilities, and interchangeable probes. It can be operated via Android mobile phones or computers using the included measuring software.

Key Features & Capabilities

Light, reliable, and durable construction
Measures 13 roughness parameters
Operable via mobile phones (Android system only) or computers
Measurement results exportable in Excel and PDF formats
Large memory capacity: stores up to 18,000 measurements with parameters only, or 30 measurements with graphs
Automatic power-off function
Probe can be set at 90° for transverse measurement
Bluetooth connection status indicator

Technical Specifications

Parameter	Specification
Parameters	Ra, Rq, Rt, Rz, Rc, Rmax, RSm, Rpc, Pt, R, AR, Rx, Ppc
Range	X axis: 17.5mm<br>Z axis: 250µm
Accuracy	±(5%+0.025)µm
Resolution (Ra)	0.001µm
Probe Type	Inductive
Stylus Radius / Angle	2µm / 90°
Stylus Material	Diamond
Measuring Unit	µm / µin
Cut off	0.25 / 0.8 / 2.5 mm
Number of Cut-off	1~5
Moving Speed	0.5 mm/s, 1 mm/s
Memory	18,000 measurements with only parameters, 30 measurements with graph
Power	Built-in rechargeable battery
Dimension (L×W×H)	160×34×33.5 mm
Weight	200g
